CGA_INTR_CNTLR_IRGEL_HIRL¶
Source: Verilog/DELILAH-CPU/CGA_INTR/circuit/CGA_INTR_CNTLR_IRGEL_HIRL.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_INTR > CGA_INTR_CNTLR > CGA_INTR_CNTLR_IRGEL > CGA_INTR_CNTLR_IRGEL_HIRL
- instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.INTR.CNTLR.IRGEL.HIRL
Used in: CGA_INTR_CNTLR_IRGEL (all tops)
Contains: AND_GATE, AND_GATE_3_INPUTS, NAND_GATE, NAND_GATE_3_INPUTS, NAND_GATE_4_INPUTS, NOR_GATE_3_INPUTS, OR_GATE, SCAN_FF_EN x2
Module hierarchy - All modules
Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.INTR.CNTLR.IRGEL.HIRL. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND120 CGA (CPU Gate Array / DELILAH) /CGA/INTR/CNTLR/IRGEL/HIRL HIRL Page 91 SHEET 1 of 1 Last reviewed: 10-NOV-2024 Ronny Hansen

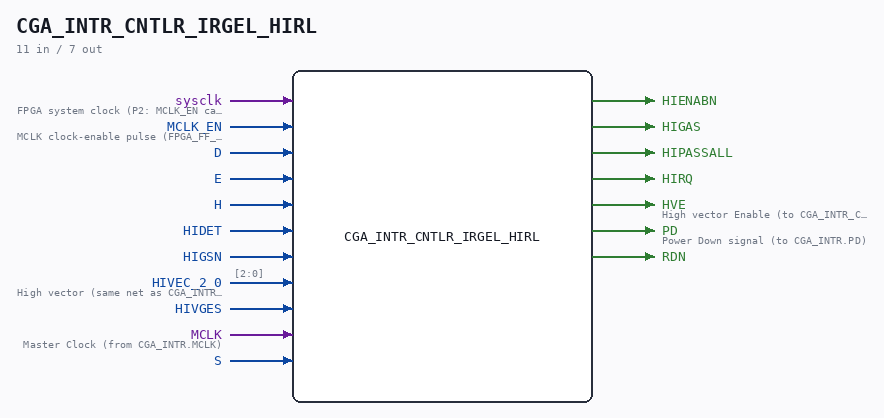

Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
sysclk |
FPGA system clock (P2: MCLK_EN capture) |
| input | 1 |
MCLK_EN |
MCLK clock-enable pulse (FPGA_FF_MODE, else 0) |
| input | 1 |
D |
|
| input | 1 |
E |
|
| input | 1 |
H |
|
| input | 1 |
HIDET |
|
| input | 1 |
HIGSN |
|
| input | [2:0] |
HIVEC_2_0 |
High vector (same net as CGA_INTR_CNTLR_IRGEL_VMUX.HIVEC_2_0) |
| input | 1 |
HIVGES |
|
| input | 1 |
MCLK |
Master Clock (from CGA_INTR.MCLK) |
| input | 1 |
S |
|
| output | 1 |
HIENABN |
|
| output | 1 |
HIGAS |
|
| output | 1 |
HIPASSALL |
|
| output | 1 |
HIRQ |
|
| output | 1 |
HVE |
High vector Enable (to CGA_INTR_CNTLR_IRGEL_VMUX.HVE) |
| output | 1 |
PD |
Power Down signal (to CGA_INTR.PD) |
| output | 1 |
RDN |
Verilog source¶
Verilog/DELILAH-CPU/CGA_INTR/circuit/CGA_INTR_CNTLR_IRGEL_HIRL.v on GitHub.
Show the Verilog of CGA_INTR_CNTLR_IRGEL_HIRL (206 lines)
/**************************************************************************
** ND120 CGA (CPU Gate Array / DELILAH) **
** /CGA/INTR/CNTLR/IRGEL/HIRL **
** HIRL **
** **
** Page 91 **
** SHEET 1 of 1 **
** **
** Last reviewed: 10-NOV-2024 **
** Ronny Hansen **
***************************************************************************/
module CGA_INTR_CNTLR_IRGEL_HIRL (
input sysclk, //! FPGA system clock (P2: MCLK_EN capture)
input MCLK_EN, //! MCLK clock-enable pulse (FPGA_FF_MODE, else 0)
input D,
input E,
input H,
input HIDET,
input HIGSN,
input [2:0] HIVEC_2_0, //! High vector (same net as CGA_INTR_CNTLR_IRGEL_VMUX.HIVEC_2_0)
input HIVGES,
input MCLK, //! Master Clock (from CGA_INTR.MCLK)
input S,
output HIENABN,
output HIGAS,
output HIPASSALL,
output HIRQ,
output HVE, //! High vector Enable (to CGA_INTR_CNTLR_IRGEL_VMUX.HVE)
output PD, //! Power Down signal (to CGA_INTR.PD)
output RDN
);
/*******************************************************************************
** The wires are defined here **
*******************************************************************************/
wire [2:0] s_hivec_2_0;
wire s_d;
wire s_e;
wire s_h;
wire s_hidet_nand_hivges;
wire s_hidet;
wire s_hidis_n /* synthesis syn_keep=1 */; // GAO probe net - see fpga/tang-nano-20k/GAO-HOWTO.md
wire s_hienab_n_out;
wire s_higas_n_out;
wire s_higas_out;
wire s_higs_n;
wire s_hipassall_n_out;
wire s_hipassall_out;
wire s_hirq_out;
wire s_hivges;
wire s_hve_out;
wire s_int_req_q /* synthesis syn_keep=1 */; // GAO probe net - see fpga/tang-nano-20k/GAO-HOWTO.md
wire s_int_req_qn /* synthesis syn_keep=1 */; // GAO probe net
wire s_mclk;
wire s_pd_out;
wire s_rd_n;
wire s_s;
/*******************************************************************************
** The module functionality is described here **
*******************************************************************************/
/*******************************************************************************
** Here all input connections are defined **
*******************************************************************************/
assign s_hivec_2_0[2:0] = HIVEC_2_0;
assign s_d = D;
assign s_hivges = HIVGES;
assign s_s = S;
assign s_hidet = HIDET;
assign s_h = H;
assign s_e = E;
assign s_mclk = MCLK;
assign s_higs_n = HIGSN;
// P2 (docs/plan-fix-unconstrained-clocks.md): in FF mode the MCLK-
// clocked registers capture on posedge sysclk gated by MCLK_EN
// (aligned to the MCLK rise) instead of clocking on the routed net.
`ifdef FPGA_FF_MODE
localparam MCLK_CE = 1;
`else
localparam MCLK_CE = 0;
`endif
/*******************************************************************************
** Here all output connections are defined **
*******************************************************************************/
assign HIENABN = s_hienab_n_out;
assign HIGAS = s_higas_out;
assign HIPASSALL = s_hipassall_out;
assign HIRQ = s_hirq_out;
assign HVE = s_hve_out;
assign PD = s_pd_out;
assign RDN = s_rd_n;
/*******************************************************************************
** Here all in-lined components are defined **
*******************************************************************************/
// NOT Gate
assign s_higas_out = ~s_higas_n_out;
// NOT Gate
assign s_hipassall_out = ~s_hipassall_n_out;
/*******************************************************************************
** Here all normal components are defined **
*******************************************************************************/
NAND_GATE_4_INPUTS #(
.BubblesMask(4'h0)
) GATES_1 (
.input1(s_hve_out),
.input2(s_hivec_2_0[2]),
.input3(s_hivec_2_0[1]),
.input4(s_hivec_2_0[0]),
.result(s_higas_n_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_2 (
.input1(s_hidet),
.input2(s_hivges),
.result(s_hidet_nand_hivges)
);
NAND_GATE_3_INPUTS #(
.BubblesMask(3'b000)
) GATES_3 (
.input1(s_hivges),
.input2(s_hidet),
.input3(s_hidis_n),
.result(s_hipassall_n_out)
);
OR_GATE #(
.BubblesMask(2'b11)
) GATES_4 (
.input1(s_higs_n),
.input2(s_hidet_nand_hivges),
.result(s_pd_out)
);
NOR_GATE_3_INPUTS #(
.BubblesMask(3'b111)
) GATES_5 (
.input1(s_hidis_n),
.input2(s_higs_n),
.input3(s_hidet_nand_hivges),
.result(s_rd_n)
);
AND_GATE #(
.BubblesMask(2'b11)
) GATES_6 (
.input1(s_hipassall_n_out),
.input2(s_int_req_qn),
.result(s_hirq_out)
);
// Vector-claim must be gated by the interrupt-request-enable FF (Am2914
// ground truth: a claim after DISIN must not fire even with requests
// pending and the mask open - the post-MCL mask is all-enabled by design).
AND_GATE_3_INPUTS #(
.BubblesMask(3'b111)
) GATES_7 (
.input1(s_hipassall_n_out),
.input2(s_s),
.input3(s_int_req_qn),
.result(s_hve_out)
);
/*******************************************************************************
** Here all sub-circuits are defined **
*******************************************************************************/
// MCLK domain (CGA_INTR.MCLK, rising edge)
SCAN_FF_EN #(.USE_ENABLE(MCLK_CE)) STATUS_OVERFLOW_FF (
.sysclk(sysclk),
.EN(MCLK_EN),
.CLK(s_mclk),
.D (s_hidis_n),
.Q (s_hidis_n),
.QN (s_hienab_n_out),
.TE (s_h),
.TI (s_higas_n_out)
);
// MCLK domain (CGA_INTR.MCLK, rising edge)
SCAN_FF_EN #(.USE_ENABLE(MCLK_CE)) INT_REQ_ENABLE_FF (
.sysclk(sysclk),
.EN(MCLK_EN),
.CLK(s_mclk),
.D (s_e),
.Q (s_int_req_q),
.QN (s_int_req_qn),
.TE (s_d),
.TI (s_int_req_q)
);
endmodule
