CGA_TRAP_TVGEN¶
Source: Verilog/DELILAH-CPU/CGA_TRAP/circuit/CGA_TRAP_TVGEN.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_TRAP > CGA_TRAP_TVGEN
- instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.TRAP.TVGEN
Used in: CGA_TRAP (all tops)
Contains: AND_GATE, CGA_TRAP_TVGEN_P2, NAND_GATE, NAND_GATE_3_INPUTS, NAND_GATE_4_INPUTS x4, NAND_GATE_5_INPUTS x4, NAND_GATE_6_INPUTS x3, OR_GATE_3_INPUTS x2, OR_GATE_5_INPUTS x2, OR_GATE_8_INPUTS
Module hierarchy - All modules
Schematic¶

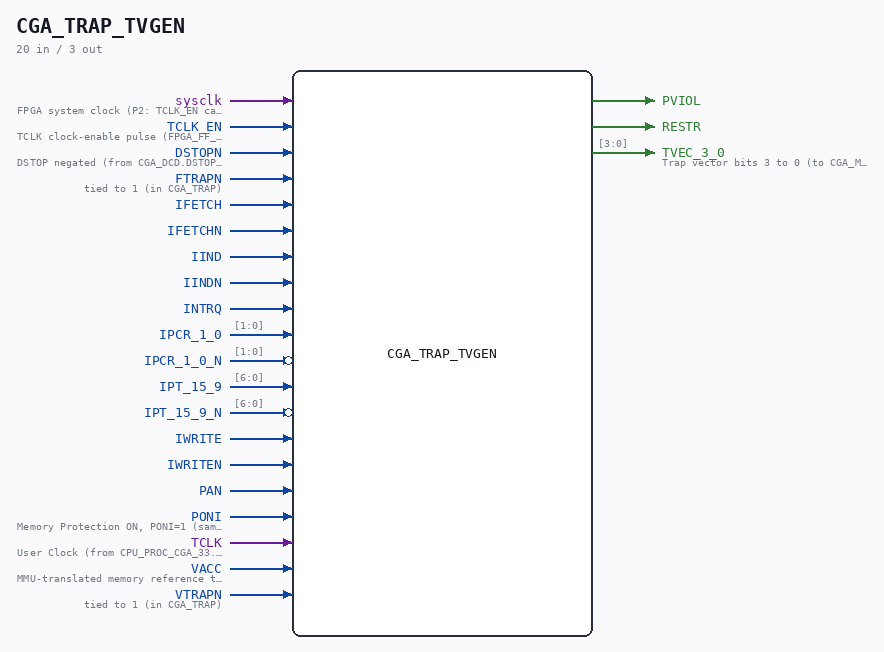

Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.TRAP.TVGEN. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND120 CGA (CPU Gate Array / DELILAH) /CGA/TRAP/TVGEN Trap Vector Generator (?) Page 104 SHEET 1 of 1 Last reviewed: 2-FEB-2024 Ronny Hansen
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
sysclk |
FPGA system clock (P2: TCLK_EN capture) |
| input | 1 |
TCLK_EN |
TCLK clock-enable pulse (FPGA_FF_MODE, else 0) |
| input | 1 |
DSTOPN |
DSTOP negated (from CGA_DCD.DSTOPN) |
| input | 1 |
FTRAPN |
tied to 1 (in CGA_TRAP) |
| input | 1 |
IFETCH |
|
| input | 1 |
IFETCHN |
|
| input | 1 |
IIND |
|
| input | 1 |
IINDN |
|
| input | 1 |
INTRQ |
|
| input | [1:0] |
IPCR_1_0 |
|
| input | [1:0] |
IPCR_1_0_N (active low) |
|
| input | [6:0] |
IPT_15_9 |
|
| input | [6:0] |
IPT_15_9_N (active low) |
|
| input | 1 |
IWRITE |
|
| input | 1 |
IWRITEN |
|
| input | 1 |
PAN |
|
| input | 1 |
PONI |
Memory Protection ON, PONI=1 (same net as CGA.XPONI) |
| input | 1 |
TCLK |
User Clock (from CPU_PROC_CGA_33.UCLK) |
| input | 1 |
VACC |
MMU-translated memory reference this cycle - qualifies every trap-vector term below |
| input | 1 |
VTRAPN |
tied to 1 (in CGA_TRAP) |
| output | 1 |
PVIOL |
|
| output | 1 |
RESTR |
|
| output | [3:0] |
TVEC_3_0 |
Trap vector bits 3 to 0 (to CGA_MIC.TVEC_3_0) |
Verilog source¶
Verilog/DELILAH-CPU/CGA_TRAP/circuit/CGA_TRAP_TVGEN.v on GitHub.
Show the Verilog of CGA_TRAP_TVGEN (364 lines)
/**************************************************************************
** ND120 CGA (CPU Gate Array / DELILAH) **
** /CGA/TRAP/TVGEN **
** Trap Vector Generator (?) **
** **
** Page 104 **
** SHEET 1 of 1 **
** **
** Last reviewed: 2-FEB-2024 **
** Ronny Hansen **
***************************************************************************/
module CGA_TRAP_TVGEN (
input sysclk, //! FPGA system clock (P2: TCLK_EN capture)
input TCLK_EN, //! TCLK clock-enable pulse (FPGA_FF_MODE, else 0)
input DSTOPN, //! DSTOP negated (from CGA_DCD.DSTOPN)
input FTRAPN, //! tied to 1 (in CGA_TRAP)
input IFETCH,
input IFETCHN,
input IIND,
input IINDN,
input INTRQ,
input [1:0] IPCR_1_0,
input [1:0] IPCR_1_0_N,
input [6:0] IPT_15_9,
input [6:0] IPT_15_9_N,
input IWRITE,
input IWRITEN,
input PAN,
input PONI, //! Memory Protection ON, PONI=1 (same net as CGA.XPONI)
input TCLK, //! User Clock (from CPU_PROC_CGA_33.UCLK)
input VACC, //! MMU-translated memory reference this cycle - qualifies every trap-vector term below
input VTRAPN, //! tied to 1 (in CGA_TRAP)
output PVIOL,
output RESTR,
output [3:0] TVEC_3_0 //! Trap vector bits 3 to 0 (to CGA_MIC.TVEC_3_0)
);
/*******************************************************************************
** The wires are defined here **
*******************************************************************************/
wire [6:0] s_ipt_15_9;
wire [1:0] s_ipcr_1_0_n;
wire [6:0] s_ipt_15_9_n;
wire [3:0] s_tvec_3_0_out;
wire [1:0] s_ipcr_1_0;
wire s_dstop_n;
wire s_fpvn_out;
wire s_ftrap_n;
wire s_gates1_out;
wire s_gates10_out;
wire s_gates3_out;
wire s_gates9_out;
wire s_ifetch_n;
wire s_ifetch;
wire s_iind_n;
wire s_iind;
wire s_intrq;
wire s_ipvn_out;
wire s_iwrite_n;
wire s_iwrite;
wire s_pan;
wire s_pgf_out;
wire s_pgfn_out;
wire s_pgu_out;
wire s_pgun_out;
wire s_poni;
wire s_pviol_out;
wire s_rd1n_out;
wire s_rd2n_out;
wire s_rd3n_out;
wire s_restr_out;
wire s_rpvn_out;
wire s_rv1n_out;
wire s_rv2n_out;
wire s_rv3n_out;
wire s_tclk;
wire s_vacc;
wire s_vtrap_n;
wire s_wip_out;
wire s_wipn_out;
wire s_wpvn_out;
/*******************************************************************************
** The module functionality is described here **
*******************************************************************************/
/*******************************************************************************
** Here all input connections are defined **
*******************************************************************************/
assign s_dstop_n = DSTOPN;
assign s_ftrap_n = FTRAPN;
assign s_ifetch = IFETCH;
assign s_ifetch_n = IFETCHN;
assign s_iind = IIND;
assign s_iind_n = IINDN;
assign s_intrq = INTRQ;
assign s_ipcr_1_0_n[1:0] = IPCR_1_0_N;
assign s_ipcr_1_0[1:0] = IPCR_1_0;
assign s_ipt_15_9_n[6:0] = IPT_15_9_N;
assign s_ipt_15_9[6:0] = IPT_15_9;
assign s_iwrite = IWRITE;
assign s_iwrite_n = IWRITEN;
assign s_pan = PAN;
assign s_poni = PONI;
assign s_tclk = TCLK;
assign s_vacc = VACC;
assign s_vtrap_n = VTRAPN;
/*******************************************************************************
** Here all output connections are defined **
*******************************************************************************/
assign PVIOL = s_pviol_out;
assign RESTR = s_restr_out;
assign TVEC_3_0 = s_tvec_3_0_out[3:0];
/*******************************************************************************
** Here all in-lined components are defined **
*******************************************************************************/
// NOT Gate
assign s_pgf_out = ~s_pgfn_out;
assign s_pgu_out = ~s_pgun_out;
assign s_wip_out = ~s_wipn_out;
// Code to make LINTER not complaing about bits _not_ read in IPT 14,12:11
(* keep = "true", DONT_TOUCH = "true" *) wire [2:0] unused_ipt_bits;
assign unused_ipt_bits[2:0] = {s_ipt_15_9[5], s_ipt_15_9[3:2]};
/*******************************************************************************
** Here all normal components are defined **
*******************************************************************************/
OR_GATE_8_INPUTS #(
.BubblesMask(8'hFF)
) GATES_1 (
.input1(s_pgfn_out),
.input2(s_wpvn_out),
.input3(s_ipvn_out),
.input4(s_fpvn_out),
.input5(s_rpvn_out),
.input6(s_rv1n_out),
.input7(s_rv2n_out),
.input8(s_rv3n_out),
.result(s_gates1_out)
);
OR_GATE_5_INPUTS #(
.BubblesMask({1'b1, 4'hF})
) GATES_2 (
.input1(s_pgfn_out),
.input2(s_wpvn_out),
.input3(s_ipvn_out),
.input4(s_fpvn_out),
.input5(s_rpvn_out),
.result(s_pviol_out)
);
OR_GATE_3_INPUTS #(
.BubblesMask(3'b111)
) GATES_3 (
.input1(s_rv3n_out),
.input2(s_rv2n_out),
.input3(s_rv1n_out),
.result(s_gates3_out)
);
NAND_GATE_4_INPUTS #(
.BubblesMask(4'h0)
) WIPN (
.input1(s_vacc),
.input2(s_iwrite),
.input3(s_ipt_15_9[6]),
.input4(s_ipt_15_9_n[3]),
.result(s_wipn_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) PGUN (
.input1(s_vacc),
.input2(s_ipt_15_9_n[2]),
.result(s_pgun_out)
);
NAND_GATE_5_INPUTS #(
.BubblesMask({1'b0, 4'h0})
) RD1N (
.input1(s_vacc),
.input2(s_ifetch),
.input3(s_ipt_15_9[4]),
.input4(s_ipt_15_9_n[1]),
.input5(s_ipcr_1_0[1]),
.result(s_rd1n_out)
);
NAND_GATE_6_INPUTS #(
.BubblesMask({2'b00, 4'h0})
) RD2N (
.input1(s_vacc),
.input2(s_ifetch),
.input3(s_ipt_15_9[4]),
.input4(s_ipt_15_9_n[1]),
.input5(s_ipt_15_9_n[0]),
.input6(s_ipcr_1_0[0]),
.result(s_rd2n_out)
);
NAND_GATE_6_INPUTS #(
.BubblesMask({2'b00, 4'h0})
) RD3N (
.input1(s_vacc),
.input2(s_ifetch),
.input3(s_ipt_15_9[4]),
.input4(s_ipt_15_9_n[0]),
.input5(s_ipcr_1_0[1]),
.input6(s_ipcr_1_0[0]),
.result(s_rd3n_out)
);
OR_GATE_5_INPUTS #(
.BubblesMask({1'b1, 4'hF})
) GATES_9 (
.input1(s_wipn_out),
.input2(s_pgun_out),
.input3(s_rd1n_out),
.input4(s_rd2n_out),
.input5(s_rd3n_out),
.result(s_gates9_out)
);
OR_GATE_3_INPUTS #(
.BubblesMask(3'b111)
) GATES_10 (
.input1(s_rd3n_out),
.input2(s_rd2n_out),
.input3(s_rd1n_out),
.result(s_gates10_out)
);
AND_GATE #(
.BubblesMask(2'b00)
) GATES_11 (
.input1(s_ipcr_1_0_n[1]),
.input2(s_poni),
.result(s_restr_out)
);
NAND_GATE_4_INPUTS #(
.BubblesMask(4'h0)
) PGFN (
.input1(s_vacc),
.input2(s_ipt_15_9_n[6]),
.input3(s_ipt_15_9_n[5]),
.input4(s_ipt_15_9_n[4]),
.result(s_pgfn_out)
);
NAND_GATE_5_INPUTS #(
.BubblesMask({1'b0, 4'h0})
) WPVN (
.input1(s_vacc),
.input2(s_iwrite),
.input3(s_iind_n),
.input4(s_ifetch_n),
.input5(s_ipt_15_9_n[6]),
.result(s_wpvn_out)
);
NAND_GATE_6_INPUTS #(
.BubblesMask({2'b00, 4'h0})
) IPVN (
.input1(s_vacc),
.input2(s_iwrite_n),
.input3(s_iind),
.input4(s_ifetch_n),
.input5(s_ipt_15_9_n[5]),
.input6(s_ipt_15_9_n[4]),
.result(s_ipvn_out)
);
NAND_GATE_5_INPUTS #(
.BubblesMask({1'b0, 4'h0})
) FPVN (
.input1(s_vacc),
.input2(s_iwrite_n),
.input3(s_iind_n),
.input4(s_ifetch),
.input5(s_ipt_15_9_n[4]),
.result(s_fpvn_out)
);
NAND_GATE_5_INPUTS #(
.BubblesMask({1'b0, 4'h0})
) RPVN (
.input1(s_vacc),
.input2(s_iwrite_n),
.input3(s_iind_n),
.input4(s_ifetch_n),
.input5(s_ipt_15_9_n[5]),
.result(s_rpvn_out)
);
NAND_GATE_3_INPUTS #(
.BubblesMask(3'b000)
) RV1N (
.input1(s_vacc),
.input2(s_ipt_15_9[1]),
.input3(s_ipcr_1_0_n[1]),
.result(s_rv1n_out)
);
NAND_GATE_4_INPUTS #(
.BubblesMask(4'h0)
) RV2N (
.input1(s_vacc),
.input2(s_ipt_15_9[0]),
.input3(s_ipcr_1_0_n[1]),
.input4(s_ipcr_1_0_n[0]),
.result(s_rv2n_out)
);
NAND_GATE_4_INPUTS #(
.BubblesMask(4'h0)
) RV3N (
.input1(s_vacc),
.input2(s_ipt_15_9[1]),
.input3(s_ipt_15_9[0]),
.input4(s_ipcr_1_0_n[0]),
.result(s_rv3n_out)
);
/*******************************************************************************
** Here all sub-circuits are defined **
*******************************************************************************/
CGA_TRAP_TVGEN_P2 TRAP_TVGEN (
.sysclk(sysclk),
.TCLK_EN(TCLK_EN),
.DSTOPN(s_dstop_n),
.FTRAPN(s_ftrap_n),
.IFETCH(s_ifetch),
.INTRQ(s_intrq),
.LEV1(s_gates1_out),
.LEV2(s_gates9_out),
.PAN(s_pan),
.PGF(s_pgf_out),
.PGU(s_pgu_out),
.PGUN(s_pgun_out),
.PVIOL(s_pviol_out),
.RD(s_gates10_out),
.RV(s_gates3_out),
.TCLK(s_tclk),
.TVEC_3_0(s_tvec_3_0_out[3:0]),
.VACC(s_vacc),
.VTRAPN(s_vtrap_n),
.WIP(s_wip_out),
.WIPN(s_wipn_out)
);
endmodule
