CGA_INTR_CNTLR_VECGEN_PTY_PTYENC¶
Source: Verilog/DELILAH-CPU/CGA_INTR/circuit/CGA_INTR_CNTLR_VECGEN_PTY_PTYENC.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_INTR > CGA_INTR_CNTLR > CGA_INTR_CNTLR_VECGEN > CGA_INTR_CNTLR_VECGEN_PTY > CGA_INTR_CNTLR_VECGEN_PTY_PTYENC
- instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.INTR.CNTLR.VECGEN.PTY.PTYENC_HI
Used in: CGA_INTR_CNTLR_VECGEN_PTY (all tops)
Contains: AND_GATE_3_INPUTS, NAND_GATE, NAND_GATE_3_INPUTS, NAND_GATE_4_INPUTS, NOR_GATE x2, NOR_GATE_4_INPUTS x2, OR_GATE, OR_GATE_8_INPUTS
Module hierarchy - All modules

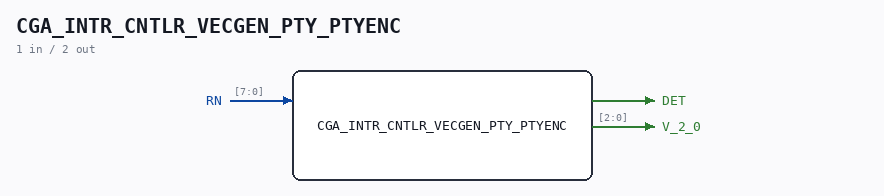

Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.INTR.CNTLR.VECGEN.PTY.PTYENC_HI. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND120 CGA (CPU Gate Array / DELILAH) /CGA/INTR/CNTLR/VECGEN/PTY/PTYENC PRIORITY ENCODER Page 83 SHEET 1 of 1 Last reviewed: 10-NOV-2024 Ronny Hansen
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | [7:0] |
RN |
|
| output | 1 |
DET |
|
| output | [2:0] |
V_2_0 |
Verilog source¶
Verilog/DELILAH-CPU/CGA_INTR/circuit/CGA_INTR_CNTLR_VECGEN_PTY_PTYENC.v on GitHub.
Show the Verilog of CGA_INTR_CNTLR_VECGEN_PTY_PTYENC (141 lines)
/**************************************************************************
** ND120 CGA (CPU Gate Array / DELILAH) **
** /CGA/INTR/CNTLR/VECGEN/PTY/PTYENC **
** PRIORITY ENCODER **
** **
** Page 83 **
** SHEET 1 of 1 **
** **
** Last reviewed: 10-NOV-2024 **
** Ronny Hansen **
***************************************************************************/
module CGA_INTR_CNTLR_VECGEN_PTY_PTYENC(
input [7:0] RN,
output DET,
output [2:0] V_2_0
);
/*******************************************************************************
** The wires are defined here **
*******************************************************************************/
wire [2:0] s_v_2_0_out;
wire [7:0] s_r_n;
wire s_det_out;
wire s_nd2_out;
wire s_nd3_out;
wire s_nd4_out;
wire s_nr2_out;
wire s_nr3_out;
wire s_or2_out;
wire s_r_1;
wire s_r_2;
wire s_r_3;
wire s_r_4;
wire s_r_5;
wire s_r_6;
wire s_r_7;
wire s_v_1_n_out;
wire s_v_2_0_out_n;
wire s_v_2_n_out;
/*******************************************************************************
** Here all input connections are defined **
*******************************************************************************/
assign s_r_n[7:0] = RN;
/*******************************************************************************
** Here all output connections are defined **
*******************************************************************************/
assign DET = s_det_out;
assign V_2_0 = s_v_2_0_out[2:0];
/*******************************************************************************
** Here all in-lined components are defined **
*******************************************************************************/
// NOT Gate: V0
assign s_v_2_0_out[0] = ~s_v_2_0_out_n;
// NOT Gate
assign s_r_6 = ~s_r_n[6];
assign s_r_4 = ~s_r_n[4];
assign s_r_2 = ~s_r_n[2];
assign s_r_7 = ~s_r_n[7];
assign s_r_5 = ~s_r_n[5];
assign s_r_3 = ~s_r_n[3];
assign s_r_1 = ~s_r_n[1];
assign s_v_2_0_out[2] = ~s_v_2_n_out;
assign s_v_2_0_out[1] = ~s_v_1_n_out;
/*******************************************************************************
** Here all normal components are defined **
*******************************************************************************/
NOR_GATE #(.BubblesMask(2'b00))
NR2 (.input1(s_r_3),
.input2(s_r_2),
.result(s_nr2_out));
NOR_GATE_4_INPUTS #(.BubblesMask(4'hF))
NRx (.input1(s_r_n[7]),
.input2(s_nd2_out),
.input3(s_nd3_out),
.input4(s_nd4_out),
.result(s_v_2_0_out_n));
NAND_GATE #(.BubblesMask(2'b00))
ND2 (.input1(s_r_n[6]),
.input2(s_r_5),
.result(s_nd2_out));
NAND_GATE_3_INPUTS #(.BubblesMask(3'b000))
ND3 (.input1(s_r_n[6]),
.input2(s_r_n[4]),
.input3(s_r_3),
.result(s_nd3_out));
NAND_GATE_4_INPUTS #(.BubblesMask(4'h0))
ND4 (.input1(s_r_n[6]),
.input2(s_r_n[4]),
.input3(s_r_n[2]),
.input4(s_r_1),
.result(s_nd4_out));
OR_GATE_8_INPUTS #(.BubblesMask(8'hFF))
ND8P (.input1(s_r_n[0]),
.input2(s_r_n[1]),
.input3(s_r_n[2]),
.input4(s_r_n[3]),
.input5(s_r_n[4]),
.input6(s_r_n[5]),
.input7(s_r_n[6]),
.input8(s_r_n[7]),
.result(s_det_out));
NOR_GATE_4_INPUTS #(.BubblesMask(4'h0))
NR4 (.input1(s_r_4),
.input2(s_r_5),
.input3(s_r_6),
.input4(s_r_7),
.result(s_v_2_n_out));
OR_GATE #(.BubblesMask(2'b00))
OR2 (.input1(s_r_7),
.input2(s_r_6),
.result(s_or2_out));
NOR_GATE #(.BubblesMask(2'b00))
O1 (.input1(s_or2_out),
.input2(s_nr3_out),
.result(s_v_1_n_out));
AND_GATE_3_INPUTS #(.BubblesMask(3'b111))
NR3 (.input1(s_r_5),
.input2(s_r_4),
.input3(s_nr2_out),
.result(s_nr3_out));
endmodule
