CGA_TRAP_BRKDET¶
Source: Verilog/DELILAH-CPU/CGA_TRAP/circuit/CGA_TRAP_BRKDET.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_TRAP > CGA_TRAP_BRKDET
- instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.TRAP.BRKDET
Used in: CGA_TRAP (all tops)
Contains: A02 x4, AND_GATE x5, AND_GATE_3_INPUTS x3, AND_GATE_4_INPUTS x2, NAND_GATE x3, NAND_GATE_3_INPUTS x5, NAND_GATE_4_INPUTS, NOR_GATE, NOR_GATE_3_INPUTS, OR_GATE_4_INPUTS x3
Module hierarchy - All modules
Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.TRAP.BRKDET. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND120 CGA (CPU Gate Array / DELILAH) /CGA/TRAP/BRKDET BREAK DETECTION (?) Page 103 SHEET 1 of 1 Last reviewed: 2-FEB-2024 Ronny Hansen

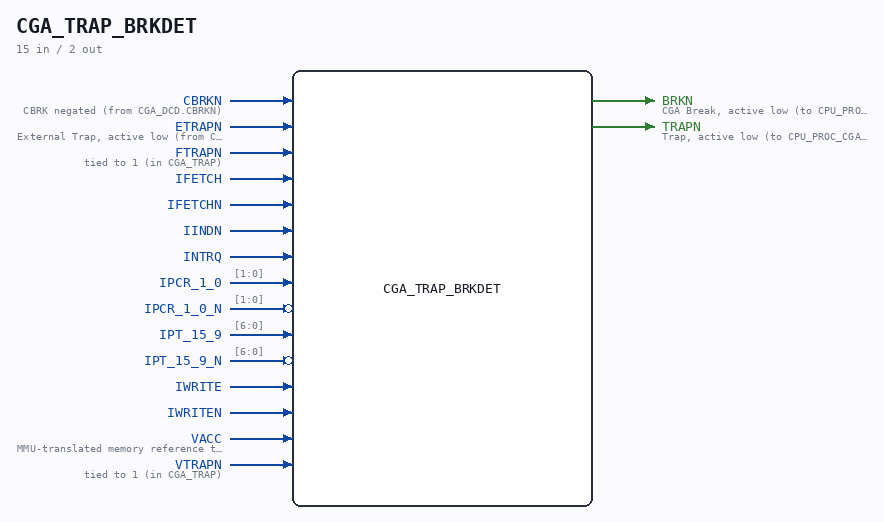

Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
CBRKN |
CBRK negated (from CGA_DCD.CBRKN) |
| input | 1 |
ETRAPN |
External Trap, active low (from CPU_PROC_CGA_33.ETRAP_n) |
| input | 1 |
FTRAPN |
tied to 1 (in CGA_TRAP) |
| input | 1 |
IFETCH |
|
| input | 1 |
IFETCHN |
|
| input | 1 |
IINDN |
|
| input | 1 |
INTRQ |
|
| input | [1:0] |
IPCR_1_0 |
|
| input | [1:0] |
IPCR_1_0_N (active low) |
|
| input | [6:0] |
IPT_15_9 |
|
| input | [6:0] |
IPT_15_9_N (active low) |
|
| input | 1 |
IWRITE |
|
| input | 1 |
IWRITEN |
|
| input | 1 |
VACC |
MMU-translated memory reference this cycle - qualifies every break/protect term |
| input | 1 |
VTRAPN |
tied to 1 (in CGA_TRAP) |
| output | 1 |
BRKN |
CGA Break, active low (to CPU_PROC_CGA_33.CGABRK_n) |
| output | 1 |
TRAPN |
Trap, active low (to CPU_PROC_CGA_33.TRAP_n) |
Verilog source¶
Verilog/DELILAH-CPU/CGA_TRAP/circuit/CGA_TRAP_BRKDET.v on GitHub.
Show the Verilog of CGA_TRAP_BRKDET (375 lines)
/**************************************************************************
** ND120 CGA (CPU Gate Array / DELILAH) **
** /CGA/TRAP/BRKDET **
** BREAK DETECTION (?) **
** **
** Page 103 **
** SHEET 1 of 1 **
** **
** Last reviewed: 2-FEB-2024 **
** Ronny Hansen **
***************************************************************************/
module CGA_TRAP_BRKDET (
input CBRKN, //! CBRK negated (from CGA_DCD.CBRKN)
input ETRAPN, //! External Trap, active low (from CPU_PROC_CGA_33.ETRAP_n)
input FTRAPN, //! tied to 1 (in CGA_TRAP)
input IFETCH,
input IFETCHN,
input IINDN,
input INTRQ,
input [1:0] IPCR_1_0,
input [1:0] IPCR_1_0_N,
input [6:0] IPT_15_9,
input [6:0] IPT_15_9_N,
input IWRITE,
input IWRITEN,
input VACC, //! MMU-translated memory reference this cycle - qualifies every break/protect term
input VTRAPN, //! tied to 1 (in CGA_TRAP)
output BRKN, //! CGA Break, active low (to CPU_PROC_CGA_33.CGABRK_n)
output TRAPN //! Trap, active low (to CPU_PROC_CGA_33.TRAP_n)
);
/*******************************************************************************
** The wires are defined here **
*******************************************************************************/
wire [1:0] s_ipcr_1_0;
wire [6:0] s_ipt_15_9;
wire [1:0] s_ipcr_1_0_n;
wire [6:0] s_ipt_15_9_n;
wire s_a02_1_z_out;
wire s_a02_2_z_out;
wire s_a02_3_z_out;
wire s_a02_4_z_out;
wire s_an2_1_out;
wire s_brk_n_out;
wire s_cbrk_n;
wire s_cbrk;
wire s_etrap_n;
wire s_ftrap_n;
wire s_gates10_out;
wire s_gates12_out;
wire s_gates14_out;
wire s_gates15_out;
wire s_gates18_out;
wire s_gates19_out;
wire s_gates2_out;
wire s_gates20_out;
wire s_gates21_out;
wire s_gates22_out;
wire s_gates23_out;
wire s_gates24_out;
wire s_gates4_out;
wire s_gates5_out;
wire s_gates7_out;
wire s_ifetch_n;
wire s_ifetch;
wire s_iind_n;
wire s_intr_out;
wire s_intrq;
wire s_ipv_out;
wire s_iwrite_n;
wire s_iwrite;
wire s_pgf_out;
wire s_rd2_out;
wire s_rv3_out;
wire s_trap_n_out;
wire s_vacc;
wire s_vtrap_n;
wire s_vtrap;
wire s_wip_out;
/*******************************************************************************
** Here all input connections are defined **
*******************************************************************************/
assign s_cbrk_n = CBRKN;
assign s_etrap_n = ETRAPN;
assign s_ftrap_n = FTRAPN;
assign s_ifetch = IFETCH;
assign s_ifetch_n = IFETCHN;
assign s_iind_n = IINDN;
assign s_intrq = INTRQ;
assign s_ipcr_1_0_n[1:0] = IPCR_1_0_N[1:0];
assign s_ipcr_1_0[1:0] = IPCR_1_0[1:0];
assign s_ipt_15_9_n[6:0] = IPT_15_9_N[6:0];
assign s_ipt_15_9[6:0] = IPT_15_9[6:0];
assign s_iwrite = IWRITE;
assign s_iwrite_n = IWRITEN;
assign s_vacc = VACC;
assign s_vtrap_n = VTRAPN;
/*******************************************************************************
** Here all output connections are defined **
*******************************************************************************/
assign BRKN = s_brk_n_out;
assign TRAPN = s_trap_n_out;
/*******************************************************************************
** Here all in-lined components are defined **
*******************************************************************************/
// NOT Gate
assign s_vtrap = ~s_vtrap_n;
assign s_cbrk = ~s_cbrk_n;
// Code to make LINTER not complaing about bits not read in IPT 14:11
(* keep = "true", DONT_TOUCH = "true" *) wire [3:0] unused_ipt_bits;
assign unused_ipt_bits[3:0] = s_ipt_15_9[5:2];
/*******************************************************************************
** Here all normal components are defined **
*******************************************************************************/
NAND_GATE_3_INPUTS #(
.BubblesMask(3'b000)
) IPV (
.input1(s_vacc),
.input2(s_ipt_15_9_n[5]),
.input3(s_ipt_15_9_n[4]),
.result(s_ipv_out)
);
AND_GATE #(
.BubblesMask(2'b00)
) GATES_2 (
.input1(s_vacc),
.input2(s_iwrite),
.result(s_gates2_out)
);
NAND_GATE_3_INPUTS #(
.BubblesMask(3'b000)
) WIP (
.input1(s_gates2_out),
.input2(s_ipt_15_9[6]), // IPT 15 3
.input3(s_ipt_15_9_n[3]), // IPT 12n
.result(s_wip_out)
);
AND_GATE_3_INPUTS #(
.BubblesMask(3'b000)
) GATES_4 (
.input1(s_vacc),
.input2(s_ifetch),
.input3(s_ipcr_1_0[0]),
.result(s_gates4_out)
);
OR_GATE_4_INPUTS #(
.BubblesMask(4'hF)
) GATES_5 (
.input1(s_ipv_out),
.input2(s_wip_out),
.input3(s_rd2_out),
.input4(s_rv3_out),
.result(s_gates5_out)
);
NAND_GATE_3_INPUTS #(
.BubblesMask(3'b000)
) RD2 (
.input1(s_gates4_out),
.input2(s_ipt_15_9_n[1]), //IPT 10n
.input3(s_ipt_15_9_n[0]), //IPT 9n
.result(s_rd2_out)
);
AND_GATE #(
.BubblesMask(2'b00)
) GATES_7 (
.input1(s_vacc),
.input2(s_ipcr_1_0_n[0]),
.result(s_gates7_out)
);
NAND_GATE_3_INPUTS #(
.BubblesMask(3'b000)
) RV3 (
.input1(s_gates7_out),
.input2(s_ipt_15_9[1]), //IPT 10
.input3(s_ipt_15_9[0]), //IPT 9
.result(s_rv3_out)
);
NAND_GATE_4_INPUTS #(
.BubblesMask(4'h0)
) PGF (
.input1(s_vacc),
.input2(s_ipt_15_9_n[6]),
.input3(s_ipt_15_9_n[5]),
.input4(s_ipt_15_9_n[4]),
.result(s_pgf_out)
);
OR_GATE_4_INPUTS #(
.BubblesMask(4'hF)
) GATES_10 (
.input1(s_pgf_out),
.input2(s_intr_out),
.input3(s_gates14_out),
.input4(s_gates15_out),
.result(s_gates10_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) INTR (
.input1(s_ifetch),
.input2(s_intrq),
.result(s_intr_out)
);
NOR_GATE_3_INPUTS #(
.BubblesMask(3'b000)
) GATES_12 (
.input1(s_gates10_out),
.input2(s_gates5_out),
.input3(s_gates20_out),
.result(s_gates12_out)
);
NOR_GATE #(
.BubblesMask(2'b11)
) GATES_13 (
.input1(s_gates12_out),
.input2(s_cbrk_n),
.result(s_brk_n_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_14 (
.input1(s_vtrap),
.input2(s_vacc),
.result(s_gates14_out)
);
NAND_GATE #(
.BubblesMask(2'b11)
) GATES_15 (
.input1(s_ftrap_n),
.input2(s_ifetch_n),
.result(s_gates15_out)
);
NAND_GATE_3_INPUTS #(
.BubblesMask(3'b111)
) GATES_16 (
.input1(s_brk_n_out),
.input2(s_cbrk),
.input3(s_etrap_n),
.result(s_trap_n_out)
);
AND_GATE #(
.BubblesMask(2'b00)
) AN2_1 (
.input1(s_vacc),
.input2(s_iwrite),
.result(s_an2_1_out)
);
AND_GATE #(
.BubblesMask(2'b00)
) GATES_18 (
.input1(s_vacc),
.input2(s_ifetch),
.result(s_gates18_out)
);
AND_GATE_4_INPUTS #(
.BubblesMask(4'h0)
) GATES_19 (
.input1(s_vacc),
.input2(s_iwrite_n),
.input3(s_iind_n),
.input4(s_ifetch_n),
.result(s_gates19_out)
);
OR_GATE_4_INPUTS #(
.BubblesMask(4'hF)
) GATES_20 (
.input1(s_a02_1_z_out),
.input2(s_a02_2_z_out),
.input3(s_a02_3_z_out),
.input4(s_a02_4_z_out),
.result(s_gates20_out)
);
AND_GATE_3_INPUTS #(
.BubblesMask(3'b000)
) GATES_21 (
.input1(s_vacc),
.input2(s_ifetch),
.input3(s_ipcr_1_0[1]),
.result(s_gates21_out)
);
AND_GATE_4_INPUTS #(
.BubblesMask(4'h0)
) GATES_22 (
.input1(s_vacc),
.input2(s_ifetch),
.input3(s_ipcr_1_0[1]),
.input4(s_ipcr_1_0[0]),
.result(s_gates22_out)
);
AND_GATE #(
.BubblesMask(2'b00)
) GATES_23 (
.input1(s_vacc),
.input2(s_ipcr_1_0_n[1]),
.result(s_gates23_out)
);
AND_GATE_3_INPUTS #(
.BubblesMask(3'b000)
) GATES_24 (
.input1(s_vacc),
.input2(s_ipcr_1_0_n[1]),
.input3(s_ipcr_1_0_n[0]),
.result(s_gates24_out)
);
/*******************************************************************************
** Here all sub-circuits are defined **
*******************************************************************************/
A02 A02_1 (
.A(s_ipt_15_9_n[4]),
.B(s_gates18_out),
.C(s_ipt_15_9_n[6]),
.D(s_an2_1_out),
.Z(s_a02_1_z_out)
);
A02 A02_2 (
.A(s_ipt_15_9_n[2]),
.B(s_vacc),
.C(s_ipt_15_9_n[5]),
.D(s_gates19_out),
.Z(s_a02_2_z_out)
);
A02 A02_3 (
.A(s_ipt_15_9_n[0]),
.B(s_gates22_out),
.C(s_ipt_15_9_n[1]),
.D(s_gates21_out),
.Z(s_a02_3_z_out)
);
A02 A02_4 (
.A(s_ipt_15_9[0]), //IPT 9
.B(s_gates24_out),
.C(s_ipt_15_9[1]), //IPT 10
.D(s_gates23_out),
.Z(s_a02_4_z_out)
);
endmodule
