CGA_INTR_CNTLR_VECGEN_OSMUX

Source: Verilog/DELILAH-CPU/CGA_INTR/circuit/CGA_INTR_CNTLR_VECGEN_OSMUX.v

Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_INTR > CGA_INTR_CNTLR > CGA_INTR_CNTLR_VECGEN > CGA_INTR_CNTLR_VECGEN_OSMUX - instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.INTR.CNTLR.VECGEN.OSMUX

Used in: CGA_INTR_CNTLR_VECGEN (all tops)

Contains: AND_GATE x2, NAND_GATE x6, OR_GATE x3

Module hierarchy - All modules

Schematic

Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.INTR.CNTLR.VECGEN.OSMUX. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Description

ND120 CGA (CPU Gate Array / DELILAH) /CGA/INTR/CNTLR/VECGEN/osmux osmux Page 89 SHEET 1 of 1 Last reviewed: 10-NOV-2024 Ronny Hansen

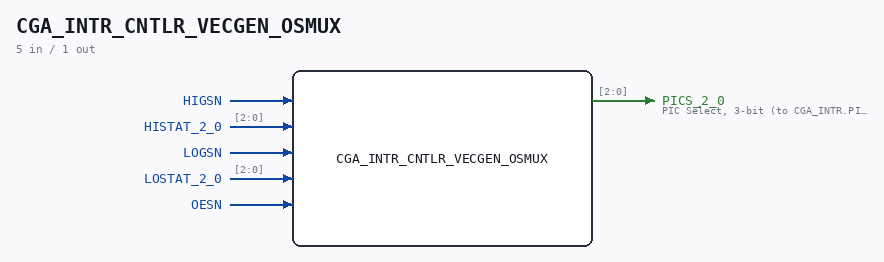

Ports

Direction	Width	Name	Description
input	1	HIGSN
input	[2:0]	HISTAT_2_0
input	1	LOGSN
input	[2:0]	LOSTAT_2_0
input	1	OESN
output	[2:0]	PICS_2_0	PIC Select, 3-bit (to CGA_INTR.PICS_2_0)

Verilog source

Verilog/DELILAH-CPU/CGA_INTR/circuit/CGA_INTR_CNTLR_VECGEN_OSMUX.v on GitHub.

Show the Verilog of CGA_INTR_CNTLR_VECGEN_OSMUX (148 lines)

/**************************************************************************
** ND120 CGA (CPU Gate Array / DELILAH)                                  **
** /CGA/INTR/CNTLR/VECGEN/osmux                                          **
** osmux                                                                 **
**                                                                       **
** Page 89                                                               **
** SHEET 1 of 1                                                          **
**                                                                       **
** Last reviewed: 10-NOV-2024                                            **
** Ronny Hansen                                                          **
***************************************************************************/

module CGA_INTR_CNTLR_VECGEN_OSMUX (
    input       HIGSN,
    input [2:0] HISTAT_2_0,
    input       LOGSN,
    input [2:0] LOSTAT_2_0,
    input       OESN,

    output [2:0] PICS_2_0  //! PIC Select, 3-bit (to CGA_INTR.PICS_2_0)
);

  /*******************************************************************************
   ** The wires are defined here                                                 **
   *******************************************************************************/
  wire [2:0] s_histat_2_0;
  wire [2:0] s_lostat_2_0;
  wire [2:0] s_pics_2_0_out;
  wire       s_gates10_out;
  wire       s_gates11_out;
  wire       s_gates2_out;
  wire       s_gates3_out;
  wire       s_gates5_out;
  wire       s_gates6_out;
  wire       s_gates7_out;
  wire       s_gates8_out;
  wire       s_higs_n;
  wire       s_logs_n;
  wire       s_oes_n;


  /*******************************************************************************
   ** Here all input connections are defined                                     **
   *******************************************************************************/
  assign s_histat_2_0[2:0] = HISTAT_2_0;
  assign s_lostat_2_0[2:0] = LOSTAT_2_0;
  assign s_higs_n          = HIGSN;
  assign s_logs_n          = LOGSN;
  assign s_oes_n           = OESN;

  /*******************************************************************************
   ** Here all output connections are defined                                    **
   *******************************************************************************/
  assign PICS_2_0          = s_pics_2_0_out[2:0];

  /*******************************************************************************
   ** Here all normal components are defined                                     **
   *******************************************************************************/
  OR_GATE #(
      .BubblesMask(2'b11)
  ) GATES_1 (
      .input1(s_gates10_out),
      .input2(s_gates11_out),
      .result(s_pics_2_0_out[1])
  );

  NAND_GATE #(
      .BubblesMask(2'b00)
  ) GATES_2 (
      .input1(s_gates5_out),
      .input2(s_histat_2_0[0]),
      .result(s_gates2_out)
  );

  NAND_GATE #(
      .BubblesMask(2'b00)
  ) GATES_3 (
      .input1(s_gates6_out),
      .input2(s_lostat_2_0[0]),
      .result(s_gates3_out)
  );

  OR_GATE #(
      .BubblesMask(2'b11)
  ) GATES_4 (
      .input1(s_gates2_out),
      .input2(s_gates3_out),
      .result(s_pics_2_0_out[0])
  );

  AND_GATE #(
      .BubblesMask(2'b11)
  ) GATES_5 (
      .input1(s_higs_n),
      .input2(s_oes_n),
      .result(s_gates5_out)
  );

  AND_GATE #(
      .BubblesMask(2'b11)
  ) GATES_6 (
      .input1(s_oes_n),
      .input2(s_logs_n),
      .result(s_gates6_out)
  );

  NAND_GATE #(
      .BubblesMask(2'b00)
  ) GATES_7 (
      .input1(s_gates5_out),
      .input2(s_histat_2_0[2]),
      .result(s_gates7_out)
  );

  NAND_GATE #(
      .BubblesMask(2'b00)
  ) GATES_8 (
      .input1(s_gates6_out),
      .input2(s_lostat_2_0[2]),
      .result(s_gates8_out)
  );

  OR_GATE #(
      .BubblesMask(2'b11)
  ) GATES_9 (
      .input1(s_gates7_out),
      .input2(s_gates8_out),
      .result(s_pics_2_0_out[2])
  );

  NAND_GATE #(
      .BubblesMask(2'b00)
  ) GATES_10 (
      .input1(s_gates5_out),
      .input2(s_histat_2_0[1]),
      .result(s_gates10_out)
  );

  NAND_GATE #(
      .BubblesMask(2'b00)
  ) GATES_11 (
      .input1(s_gates6_out),
      .input2(s_lostat_2_0[1]),
      .result(s_gates11_out)
  );


endmodule
