CGA_ALU_SMUX¶
Source: Verilog/DELILAH-CPU/CGA_ALU/circuit/CGA_ALU_SMUX.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_ALU > CGA_ALU_SMUX
- instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.ALU.ALU_SMUX
Used in: CGA_ALU (all tops)
Contains: MUX41P x16
Module hierarchy - All modules
Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.ALU.ALU_SMUX. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND120 CGA (CPU Gate Array / DELILAH) /CGA/ALU/SMUX SMUX Page 45 SHEET 1 of 1 Last reviewed: 10-NOV-2024 Ronny Hansen

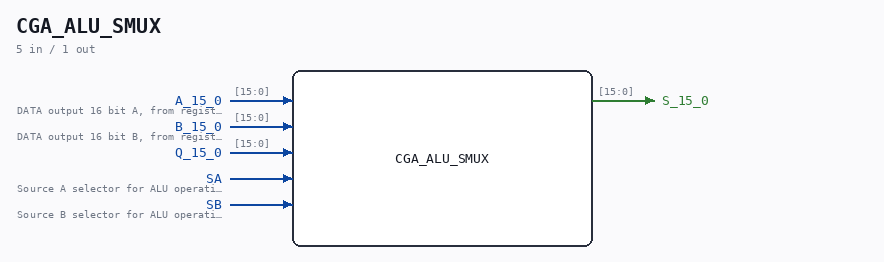

Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | [15:0] |
A_15_0 |
DATA output 16 bit A, from register selected by LAA_3_0 (from CGA_WRF.A_15_0) |
| input | [15:0] |
B_15_0 |
DATA output 16 bit B, from register selected by LBA_3_0 (from CGA_WRF.B_15_0) |
| input | [15:0] |
Q_15_0 |
|
| input | 1 |
SA |
Source A selector for ALU operations (from CGA_CPU_ALU_CONTR.SA) |
| input | 1 |
SB |
Source B selector for ALU operations (from CGA_CPU_ALU_CONTR.SB) |
| output | [15:0] |
S_15_0 |
Verilog source¶
Verilog/DELILAH-CPU/CGA_ALU/circuit/CGA_ALU_SMUX.v on GitHub.
Show the Verilog of CGA_ALU_SMUX (220 lines)
/**************************************************************************
** ND120 CGA (CPU Gate Array / DELILAH) **
** /CGA/ALU/SMUX **
** SMUX **
** **
** Page 45 **
** SHEET 1 of 1 **
** **
** Last reviewed: 10-NOV-2024 **
** Ronny Hansen **
**************************************************************************/
module CGA_ALU_SMUX (
input [15:0] A_15_0, //! DATA output 16 bit A, from register selected by LAA_3_0 (from CGA_WRF.A_15_0)
input [15:0] B_15_0, //! DATA output 16 bit B, from register selected by LBA_3_0 (from CGA_WRF.B_15_0)
input [15:0] Q_15_0,
input SA, //! Source A selector for ALU operations (from CGA_CPU_ALU_CONTR.SA)
input SB, //! Source B selector for ALU operations (from CGA_CPU_ALU_CONTR.SB)
output [15:0] S_15_0
);
/*******************************************************************************
** The wires are defined here **
*******************************************************************************/
wire [15:0] s_b_15_0;
wire [15:0] s_q_15_0;
wire [15:0] s_a_15_0;
wire [15:0] s_s_15_0_out;
wire s_gnd;
wire s_sa;
wire s_sb;
/*******************************************************************************
** Here all input connections are defined **
*******************************************************************************/
assign s_b_15_0[15:0] = B_15_0;
assign s_a_15_0[15:0] = A_15_0;
assign s_q_15_0[15:0] = Q_15_0;
assign s_sa = SA;
assign s_sb = SB;
/*******************************************************************************
** Here all output connections are defined **
*******************************************************************************/
assign S_15_0 = s_s_15_0_out[15:0];
/*******************************************************************************
** Here all in-lined components are defined **
*******************************************************************************/
// Ground
assign s_gnd = 1'b0;
/*******************************************************************************
** Here all sub-circuits are defined **
*******************************************************************************/
MUX41P MUXS15 (
.A (s_sa),
.B (s_sb),
.D0(s_q_15_0[15]),
.D1(s_b_15_0[15]),
.D2(s_gnd),
.D3(s_a_15_0[15]),
.Z (s_s_15_0_out[15])
);
MUX41P MUXS14 (
.A (s_sa),
.B (s_sb),
.D0(s_q_15_0[14]),
.D1(s_b_15_0[14]),
.D2(s_gnd),
.D3(s_a_15_0[14]),
.Z (s_s_15_0_out[14])
);
MUX41P MUXS13 (
.A (s_sa),
.B (s_sb),
.D0(s_q_15_0[13]),
.D1(s_b_15_0[13]),
.D2(s_gnd),
.D3(s_a_15_0[13]),
.Z (s_s_15_0_out[13])
);
MUX41P MUXS12 (
.A (s_sa),
.B (s_sb),
.D0(s_q_15_0[12]),
.D1(s_b_15_0[12]),
.D2(s_gnd),
.D3(s_a_15_0[12]),
.Z (s_s_15_0_out[12])
);
MUX41P MUXS11 (
.A (s_sa),
.B (s_sb),
.D0(s_q_15_0[11]),
.D1(s_b_15_0[11]),
.D2(s_gnd),
.D3(s_a_15_0[11]),
.Z (s_s_15_0_out[11])
);
MUX41P MUXS10 (
.A (s_sa),
.B (s_sb),
.D0(s_q_15_0[10]),
.D1(s_b_15_0[10]),
.D2(s_gnd),
.D3(s_a_15_0[10]),
.Z (s_s_15_0_out[10])
);
MUX41P MUXS9 (
.A (s_sa),
.B (s_sb),
.D0(s_q_15_0[9]),
.D1(s_b_15_0[9]),
.D2(s_gnd),
.D3(s_a_15_0[9]),
.Z (s_s_15_0_out[9])
);
MUX41P MUXS8 (
.A (s_sa),
.B (s_sb),
.D0(s_q_15_0[8]),
.D1(s_b_15_0[8]),
.D2(s_gnd),
.D3(s_a_15_0[8]),
.Z (s_s_15_0_out[8])
);
MUX41P MUXS7 (
.A (s_sa),
.B (s_sb),
.D0(s_q_15_0[7]),
.D1(s_b_15_0[7]),
.D2(s_gnd),
.D3(s_a_15_0[7]),
.Z (s_s_15_0_out[7])
);
MUX41P MUXS6 (
.A (s_sa),
.B (s_sb),
.D0(s_q_15_0[6]),
.D1(s_b_15_0[6]),
.D2(s_gnd),
.D3(s_a_15_0[6]),
.Z (s_s_15_0_out[6])
);
MUX41P MUXS5 (
.A (s_sa),
.B (s_sb),
.D0(s_q_15_0[5]),
.D1(s_b_15_0[5]),
.D2(s_gnd),
.D3(s_a_15_0[5]),
.Z (s_s_15_0_out[5])
);
MUX41P MUXS4 (
.A (s_sa),
.B (s_sb),
.D0(s_q_15_0[4]),
.D1(s_b_15_0[4]),
.D2(s_gnd),
.D3(s_a_15_0[4]),
.Z (s_s_15_0_out[4])
);
MUX41P MUXS3 (
.A (s_sa),
.B (s_sb),
.D0(s_q_15_0[3]),
.D1(s_b_15_0[3]),
.D2(s_gnd),
.D3(s_a_15_0[3]),
.Z (s_s_15_0_out[3])
);
MUX41P MUXS2 (
.A (s_sa),
.B (s_sb),
.D0(s_q_15_0[2]),
.D1(s_b_15_0[2]),
.D2(s_gnd),
.D3(s_a_15_0[2]),
.Z (s_s_15_0_out[2])
);
MUX41P MUXS1 (
.A (s_sa),
.B (s_sb),
.D0(s_q_15_0[1]),
.D1(s_b_15_0[1]),
.D2(s_gnd),
.D3(s_a_15_0[1]),
.Z (s_s_15_0_out[1])
);
MUX41P MUXS0 (
.A (s_sa),
.B (s_sb),
.D0(s_q_15_0[0]),
.D1(s_b_15_0[0]),
.D2(s_gnd),
.D3(s_a_15_0[0]),
.Z (s_s_15_0_out[0])
);
endmodule
