CGA_ALU_OUTMUX¶
Source: Verilog/DELILAH-CPU/CGA_ALU/circuit/CGA_ALU_OUTMUX.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_ALU > CGA_ALU_OUTMUX
- instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.ALU.ALU_OUTMUX
Used in: CGA_ALU (all tops)
Contains: CGA_ALU_OUTMUX_IDBS, CGA_ALU_OUTMUX_SEL8 x15, CGA_CPU_ALU_OUTMUX_SEL7, MUX31LP x16
Module hierarchy - All modules

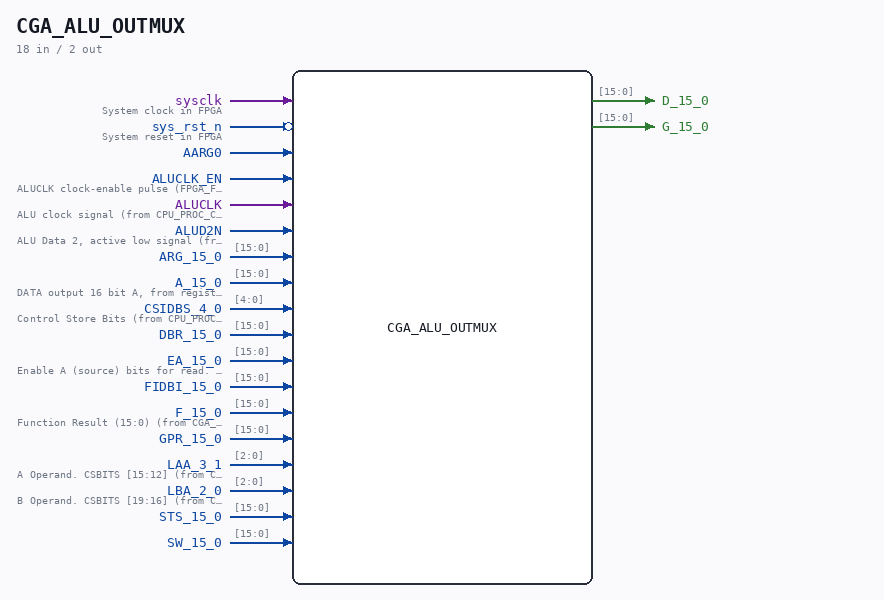

Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.ALU.ALU_OUTMUX. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND120 CGA (CPU Gate Array / DELILAH) /CGA/ALU/OUTMUX OUT MUX Page 55 SHEET 1 of 1 Last reviewed: 29-JAN-2025 Ronny Hansen
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
sysclk |
System clock in FPGA |
| input | 1 |
sys_rst_n (active low) |
System reset in FPGA |
| input | 1 |
AARG0 |
|
| input | 1 |
ALUCLK_EN |
ALUCLK clock-enable pulse (FPGA_FF_MODE, else 0) |
| input | 1 |
ALUCLK |
ALU clock signal (from CPU_PROC_CGA_33.ALUCLK) |
| input | 1 |
ALUD2N |
ALU Data 2, active low signal (from CGA_CPU_ALU_CONTR.ALUD2N) |
| input | [15:0] |
ARG_15_0 |
|
| input | [15:0] |
A_15_0 |
DATA output 16 bit A, from register selected by LAA_3_0 (from CGA_WRF.A_15_0) |
| input | [4:0] |
CSIDBS_4_0 |
Control Store Bits (from CPU_PROC_CGA_33.CSBITS[41:37]) |
| input | [15:0] |
DBR_15_0 |
|
| input | [15:0] |
EA_15_0 |
Enable A (source) bits for read. 16 bits to select register. (from CGA_WRF.EA_15_0) |
| input | [15:0] |
FIDBI_15_0 |
|
| input | [15:0] |
F_15_0 |
Function Result (15:0) (from CGA_CPU_ALU_RALU.F_15_0) |
| input | [15:0] |
GPR_15_0 |
|
| input | [2:0] |
LAA_3_1 |
A Operand. CSBITS [15:12] (from CGA_ALU.LAA_3_0[3:1]) |
| input | [2:0] |
LBA_2_0 |
B Operand. CSBITS [19:16] (from CGA_ALU.LBA_3_0[2:0]) |
| input | [15:0] |
STS_15_0 |
|
| input | [15:0] |
SW_15_0 |
|
| output | [15:0] |
D_15_0 |
|
| output | [15:0] |
G_15_0 |
Verilog source¶
Verilog/DELILAH-CPU/CGA_ALU/circuit/CGA_ALU_OUTMUX.v on GitHub.
Show the Verilog of CGA_ALU_OUTMUX (945 lines)
/**************************************************************************
** ND120 CGA (CPU Gate Array / DELILAH) **
** /CGA/ALU/OUTMUX **
** OUT MUX **
** **
** Page 55 **
** SHEET 1 of 1 **
** **
** Last reviewed: 29-JAN-2025 **
** Ronny Hansen **
***************************************************************************/
module CGA_ALU_OUTMUX (
// System input signals
input sysclk, // System clock in FPGA
input sys_rst_n, // System reset in FPGA
input AARG0,
input ALUCLK_EN, //! ALUCLK clock-enable pulse (FPGA_FF_MODE, else 0)
input ALUCLK, //! ALU clock signal (from CPU_PROC_CGA_33.ALUCLK)
input ALUD2N, //! ALU Data 2, active low signal (from CGA_CPU_ALU_CONTR.ALUD2N)
input [15:0] ARG_15_0,
input [15:0] A_15_0, //! DATA output 16 bit A, from register selected by LAA_3_0 (from CGA_WRF.A_15_0)
input [ 4:0] CSIDBS_4_0, //! Control Store Bits (from CPU_PROC_CGA_33.CSBITS[41:37])
input [15:0] DBR_15_0,
input [15:0] EA_15_0, //! Enable A (source) bits for read. 16 bits to select register. (from CGA_WRF.EA_15_0)
input [15:0] FIDBI_15_0,
input [15:0] F_15_0, //! Function Result (15:0) (from CGA_CPU_ALU_RALU.F_15_0)
input [15:0] GPR_15_0,
input [ 2:0] LAA_3_1, //! A Operand. CSBITS [15:12] (from CGA_ALU.LAA_3_0[3:1])
input [ 2:0] LBA_2_0, //! B Operand. CSBITS [19:16] (from CGA_ALU.LBA_3_0[2:0])
input [15:0] STS_15_0,
input [15:0] SW_15_0,
output [15:0] D_15_0,
output [15:0] G_15_0
);
/*******************************************************************************
** The wires are defined here **
*******************************************************************************/
wire [ 2:0] s_laa_3_1;
wire [ 2:0] s_lba_2_0;
wire [ 4:0] s_csidbs_4_0;
wire [ 6:0] s_e_dmux7;
wire [ 6:0] s_si_dmux7;
wire [ 7:0] s_e_dmux0;
wire [ 7:0] s_e_dmux1;
wire [ 7:0] s_e_dmux10;
wire [ 7:0] s_e_dmux11;
wire [ 7:0] s_e_dmux12;
wire [ 7:0] s_e_dmux13;
wire [ 7:0] s_e_dmux14;
wire [ 7:0] s_e_dmux15;
wire [ 7:0] s_e_dmux2;
wire [ 7:0] s_e_dmux3;
wire [ 7:0] s_e_dmux4;
wire [ 7:0] s_e_dmux5;
wire [ 7:0] s_e_dmux6;
wire [ 7:0] s_e_dmux8;
wire [ 7:0] s_e_dmux9;
wire [ 7:0] s_si_dmux0;
wire [ 7:0] s_si_dmux1;
wire [ 7:0] s_si_dmux10;
wire [ 7:0] s_si_dmux11;
wire [ 7:0] s_si_dmux12;
wire [ 7:0] s_si_dmux13;
wire [ 7:0] s_si_dmux14;
wire [ 7:0] s_si_dmux15;
wire [ 7:0] s_si_dmux2;
wire [ 7:0] s_si_dmux3;
wire [ 7:0] s_si_dmux4;
wire [ 7:0] s_si_dmux5;
wire [ 7:0] s_si_dmux6;
wire [ 7:0] s_si_dmux8;
wire [ 7:0] s_si_dmux9;
wire [15:0] s_a_15_0;
wire [15:0] s_arg_15_0;
wire [15:0] s_d_15_0_out;
wire [15:0] s_dbr_15_0;
wire [15:0] s_ea_15_0;
wire [15:0] s_f_15_0;
wire [15:0] s_fidbi_15_0;
wire [15:0] s_g_15_0_out;
wire [15:0] s_gpr_15_0;
wire [15:0] s_sts_15_0;
wire [15:0] s_sw_15_0;
wire s_aluclk;
wire s_alud2n;
wire s_arg_0;
wire s_arg_1;
wire s_arg_10;
wire s_arg_11;
wire s_arg_12;
wire s_arg_13;
wire s_arg_14;
wire s_arg_15;
wire s_arg_2;
wire s_arg_3;
wire s_arg_4;
wire s_arg_5;
wire s_arg_6;
wire s_arg_7;
wire s_arg_8;
wire s_arg_9;
wire s_dbr_0;
wire s_dbr_1;
wire s_dbr_10;
wire s_dbr_11;
wire s_dbr_12;
wire s_dbr_13;
wire s_dbr_14;
wire s_dbr_15;
wire s_dbr_2;
wire s_dbr_3;
wire s_dbr_4;
wire s_dbr_5;
wire s_dbr_6;
wire s_dbr_7;
wire s_dbr_8;
wire s_dbr_9;
wire s_ea_0;
wire s_ea_1;
wire s_ea_10;
wire s_ea_11;
wire s_ea_12;
wire s_ea_13;
wire s_ea_14;
wire s_ea_15;
wire s_ea_2;
wire s_ea_3;
wire s_ea_4;
wire s_ea_5;
wire s_ea_6;
wire s_ea_7;
wire s_ea_8;
wire s_ea_9;
wire s_ea;
wire s_eaarg;
wire s_eabarg;
wire s_earg;
wire s_ebarg;
wire s_ebmg;
wire s_edbr;
wire s_ef;
wire s_efidb;
wire s_egprh;
wire s_egprl;
wire s_egprs;
wire s_ests;
wire s_eswap;
wire s_fidbi_0;
wire s_fidbi_1;
wire s_fidbi_10;
wire s_fidbi_11;
wire s_fidbi_12;
wire s_fidbi_13;
wire s_fidbi_14;
wire s_fidbi_15;
wire s_fidbi_2;
wire s_fidbi_3;
wire s_fidbi_4;
wire s_fidbi_5;
wire s_fidbi_6;
wire s_fidbi_7;
wire s_fidbi_8;
wire s_fidbi_9;
wire s_gpr_0;
wire s_gpr_1;
wire s_gpr_10;
wire s_gpr_11;
wire s_gpr_12;
wire s_gpr_13;
wire s_gpr_14;
wire s_gpr_15;
wire s_gpr_2;
wire s_gpr_3;
wire s_gpr_4;
wire s_gpr_5;
wire s_gpr_6;
wire s_gpr_7;
wire s_gpr_8;
wire s_gpr_9;
wire s_laa_1;
wire s_laa_2;
wire s_laa_3;
wire s_lba_0;
wire s_lba_1;
wire s_lba_2;
wire s_sts_0;
wire s_sts_1;
wire s_sts_10;
wire s_sts_11;
wire s_sts_12;
wire s_sts_13;
wire s_sts_14;
wire s_sts_15;
wire s_sts_2;
wire s_sts_3;
wire s_sts_4;
wire s_sts_5;
wire s_sts_6;
wire s_sts_7;
wire s_sts_8;
wire s_sts_9;
wire s_sw_0;
wire s_sw_1;
wire s_sw_10;
wire s_sw_11;
wire s_sw_12;
wire s_sw_13;
wire s_sw_14;
wire s_sw_15;
wire s_sw_2;
wire s_sw_3;
wire s_sw_4;
wire s_sw_5;
wire s_sw_6;
wire s_sw_7;
wire s_sw_8;
wire s_sw_9;
/*******************************************************************************
** Here all wiring is defined **
*******************************************************************************/
// Enable DMUX 0-15
assign s_e_dmux0[0] = s_ebmg;
assign s_e_dmux0[1] = s_edbr;
assign s_e_dmux0[2] = s_earg;
assign s_e_dmux0[3] = s_ests;
assign s_e_dmux0[4] = s_eswap;
assign s_e_dmux0[5] = s_efidb;
assign s_e_dmux0[6] = s_egprl;
assign s_e_dmux0[7] = s_ebarg;
assign s_e_dmux1[0] = s_ebmg;
assign s_e_dmux1[1] = s_edbr;
assign s_e_dmux1[2] = s_earg;
assign s_e_dmux1[3] = s_ests;
assign s_e_dmux1[4] = s_eswap;
assign s_e_dmux1[5] = s_efidb;
assign s_e_dmux1[6] = s_egprl;
assign s_e_dmux1[7] = s_ebarg;
assign s_e_dmux2[0] = s_ebmg;
assign s_e_dmux2[1] = s_edbr;
assign s_e_dmux2[2] = s_earg;
assign s_e_dmux2[3] = s_ests;
assign s_e_dmux2[4] = s_eswap;
assign s_e_dmux2[5] = s_efidb;
assign s_e_dmux2[6] = s_egprl;
assign s_e_dmux2[7] = s_ebarg;
assign s_e_dmux3[0] = s_ebmg;
assign s_e_dmux3[1] = s_edbr;
assign s_e_dmux3[2] = s_earg;
assign s_e_dmux3[3] = s_ests;
assign s_e_dmux3[4] = s_eswap;
assign s_e_dmux3[5] = s_efidb;
assign s_e_dmux3[6] = s_egprl;
assign s_e_dmux3[7] = s_eabarg;
assign s_e_dmux4[0] = s_ebmg;
assign s_e_dmux4[1] = s_edbr;
assign s_e_dmux4[2] = s_earg;
assign s_e_dmux4[3] = s_ests;
assign s_e_dmux4[4] = s_eswap;
assign s_e_dmux4[5] = s_efidb;
assign s_e_dmux4[6] = s_egprl;
assign s_e_dmux4[7] = s_eaarg;
assign s_e_dmux5[0] = s_ebmg;
assign s_e_dmux5[1] = s_edbr;
assign s_e_dmux5[2] = s_earg;
assign s_e_dmux5[3] = s_ests;
assign s_e_dmux5[4] = s_eswap;
assign s_e_dmux5[5] = s_efidb;
assign s_e_dmux5[6] = s_egprl;
assign s_e_dmux5[7] = s_eaarg;
assign s_e_dmux6[0] = s_ebmg;
assign s_e_dmux6[1] = s_edbr;
assign s_e_dmux6[2] = s_earg;
assign s_e_dmux6[3] = s_ests;
assign s_e_dmux6[4] = s_eswap;
assign s_e_dmux6[5] = s_efidb;
assign s_e_dmux6[6] = s_egprl;
assign s_e_dmux6[7] = s_eaarg;
assign s_e_dmux7[0] = s_ebmg;
assign s_e_dmux7[1] = s_edbr;
assign s_e_dmux7[2] = s_earg;
assign s_e_dmux7[3] = s_ests;
assign s_e_dmux7[4] = s_eswap;
assign s_e_dmux7[5] = s_efidb;
assign s_e_dmux7[6] = s_egprl;
assign s_e_dmux8[0] = s_ebmg;
assign s_e_dmux8[1] = s_edbr;
assign s_e_dmux8[2] = s_earg;
assign s_e_dmux8[3] = s_ests;
assign s_e_dmux8[4] = s_eswap;
assign s_e_dmux8[5] = s_efidb;
assign s_e_dmux8[6] = s_egprh;
assign s_e_dmux8[7] = s_egprs;
assign s_e_dmux9[0] = s_ebmg;
assign s_e_dmux9[1] = s_edbr;
assign s_e_dmux9[2] = s_earg;
assign s_e_dmux9[3] = s_ests;
assign s_e_dmux9[4] = s_eswap;
assign s_e_dmux9[5] = s_efidb;
assign s_e_dmux9[6] = s_egprh;
assign s_e_dmux9[7] = s_egprs;
assign s_e_dmux10[0] = s_ebmg;
assign s_e_dmux10[1] = s_edbr;
assign s_e_dmux10[2] = s_earg;
assign s_e_dmux10[3] = s_ests;
assign s_e_dmux10[4] = s_eswap;
assign s_e_dmux10[5] = s_efidb;
assign s_e_dmux10[6] = s_egprh;
assign s_e_dmux10[7] = s_egprs;
assign s_e_dmux11[0] = s_ebmg;
assign s_e_dmux11[1] = s_edbr;
assign s_e_dmux11[2] = s_earg;
assign s_e_dmux11[3] = s_ests;
assign s_e_dmux11[4] = s_eswap;
assign s_e_dmux11[5] = s_efidb;
assign s_e_dmux11[6] = s_egprh;
assign s_e_dmux11[7] = s_egprs;
assign s_e_dmux12[0] = s_ebmg;
assign s_e_dmux12[1] = s_edbr;
assign s_e_dmux12[2] = s_earg;
assign s_e_dmux12[3] = s_ests;
assign s_e_dmux12[4] = s_eswap;
assign s_e_dmux12[5] = s_efidb;
assign s_e_dmux12[6] = s_egprh;
assign s_e_dmux12[7] = s_egprs;
assign s_e_dmux13[0] = s_ebmg;
assign s_e_dmux13[1] = s_edbr;
assign s_e_dmux13[2] = s_earg;
assign s_e_dmux13[3] = s_ests;
assign s_e_dmux13[4] = s_eswap;
assign s_e_dmux13[5] = s_efidb;
assign s_e_dmux13[6] = s_egprh;
assign s_e_dmux13[7] = s_egprs;
assign s_e_dmux14[0] = s_ebmg;
assign s_e_dmux14[1] = s_edbr;
assign s_e_dmux14[2] = s_earg;
assign s_e_dmux14[3] = s_ests;
assign s_e_dmux14[4] = s_eswap;
assign s_e_dmux14[5] = s_efidb;
assign s_e_dmux14[6] = s_egprh;
assign s_e_dmux14[7] = s_egprs;
assign s_e_dmux15[0] = s_ebmg;
assign s_e_dmux15[1] = s_edbr;
assign s_e_dmux15[2] = s_earg;
assign s_e_dmux15[3] = s_ests;
assign s_e_dmux15[4] = s_eswap;
assign s_e_dmux15[5] = s_efidb;
assign s_e_dmux15[6] = s_egprh;
assign s_e_dmux15[7] = s_egprs;
// SIGNAL DMUX 0-15
assign s_si_dmux0[0] = s_ea_0;
assign s_si_dmux0[1] = s_dbr_0;
assign s_si_dmux0[2] = s_arg_0;
assign s_si_dmux0[3] = s_sts_0;
assign s_si_dmux0[4] = s_sw_0;
assign s_si_dmux0[5] = s_fidbi_0;
assign s_si_dmux0[6] = s_gpr_0;
assign s_si_dmux0[7] = s_lba_0;
assign s_si_dmux1[0] = s_ea_1;
assign s_si_dmux1[1] = s_dbr_1;
assign s_si_dmux1[2] = s_arg_1;
assign s_si_dmux1[3] = s_sts_1;
assign s_si_dmux1[4] = s_sw_1;
assign s_si_dmux1[5] = s_fidbi_1;
assign s_si_dmux1[6] = s_gpr_1;
assign s_si_dmux1[7] = s_lba_1;
assign s_si_dmux2[0] = s_ea_2;
assign s_si_dmux2[1] = s_dbr_2;
assign s_si_dmux2[2] = s_arg_2;
assign s_si_dmux2[3] = s_sts_2;
assign s_si_dmux2[4] = s_sw_2;
assign s_si_dmux2[5] = s_fidbi_2;
assign s_si_dmux2[6] = s_gpr_2;
assign s_si_dmux2[7] = s_lba_2;
assign s_si_dmux3[0] = s_ea_3;
assign s_si_dmux3[1] = s_dbr_3;
assign s_si_dmux3[2] = s_arg_3;
assign s_si_dmux3[3] = s_sts_3;
assign s_si_dmux3[4] = s_sw_3;
assign s_si_dmux3[5] = s_fidbi_3;
assign s_si_dmux3[6] = s_gpr_3;
assign s_si_dmux3[7] = AARG0;
assign s_si_dmux4[0] = s_ea_4;
assign s_si_dmux4[1] = s_dbr_4;
assign s_si_dmux4[2] = s_arg_4;
assign s_si_dmux4[3] = s_sts_4;
assign s_si_dmux4[4] = s_sw_4;
assign s_si_dmux4[5] = s_fidbi_4;
assign s_si_dmux4[6] = s_gpr_4;
assign s_si_dmux4[7] = s_laa_1;
assign s_si_dmux5[0] = s_ea_5;
assign s_si_dmux5[1] = s_dbr_5;
assign s_si_dmux5[2] = s_arg_5;
assign s_si_dmux5[3] = s_sts_5;
assign s_si_dmux5[4] = s_sw_5;
assign s_si_dmux5[5] = s_fidbi_5;
assign s_si_dmux5[6] = s_gpr_5;
assign s_si_dmux5[7] = s_laa_2;
assign s_si_dmux6[0] = s_ea_6;
assign s_si_dmux6[1] = s_dbr_6;
assign s_si_dmux6[2] = s_arg_6;
assign s_si_dmux6[3] = s_sts_6;
assign s_si_dmux6[4] = s_sw_6;
assign s_si_dmux6[5] = s_fidbi_6;
assign s_si_dmux6[6] = s_gpr_6;
assign s_si_dmux6[7] = s_laa_3;
assign s_si_dmux7[0] = s_ea_7;
assign s_si_dmux7[1] = s_dbr_7;
assign s_si_dmux7[2] = s_arg_7;
assign s_si_dmux7[3] = s_sts_7;
assign s_si_dmux7[4] = s_sw_7;
assign s_si_dmux7[5] = s_fidbi_7;
assign s_si_dmux7[6] = s_gpr_7;
assign s_si_dmux8[0] = s_ea_8;
assign s_si_dmux8[1] = s_dbr_8;
assign s_si_dmux8[2] = s_arg_8;
assign s_si_dmux8[3] = s_sts_8;
assign s_si_dmux8[4] = s_sw_8;
assign s_si_dmux8[5] = s_fidbi_8;
assign s_si_dmux8[6] = s_gpr_8; // GPR
assign s_si_dmux8[7] = s_gpr_7; // GPR Sign extended
assign s_si_dmux9[0] = s_ea_9;
assign s_si_dmux9[1] = s_dbr_9;
assign s_si_dmux9[2] = s_arg_9;
assign s_si_dmux9[3] = s_sts_9;
assign s_si_dmux9[4] = s_sw_9;
assign s_si_dmux9[5] = s_fidbi_9;
assign s_si_dmux9[6] = s_gpr_9; // GPR
assign s_si_dmux9[7] = s_gpr_7; // GPR Sign extended
assign s_si_dmux10[0] = s_ea_10;
assign s_si_dmux10[1] = s_dbr_10;
assign s_si_dmux10[2] = s_arg_10;
assign s_si_dmux10[3] = s_sts_10;
assign s_si_dmux10[4] = s_sw_10;
assign s_si_dmux10[5] = s_fidbi_10;
assign s_si_dmux10[6] = s_gpr_10; // GPR
assign s_si_dmux10[7] = s_gpr_7; // GPR Sign extended
assign s_si_dmux11[0] = s_ea_11;
assign s_si_dmux11[1] = s_dbr_11;
assign s_si_dmux11[2] = s_arg_11;
assign s_si_dmux11[3] = s_sts_11;
assign s_si_dmux11[4] = s_sw_11;
assign s_si_dmux11[5] = s_fidbi_11;
assign s_si_dmux11[6] = s_gpr_11;
assign s_si_dmux11[7] = s_gpr_7; // GPR Sign extended
assign s_si_dmux12[0] = s_ea_12;
assign s_si_dmux12[1] = s_dbr_12;
assign s_si_dmux12[2] = s_arg_12;
assign s_si_dmux12[3] = s_sts_12;
assign s_si_dmux12[4] = s_sw_12;
assign s_si_dmux12[5] = s_fidbi_12;
assign s_si_dmux12[6] = s_gpr_12;
assign s_si_dmux12[7] = s_gpr_7; // GPR Sign extended
assign s_si_dmux13[0] = s_ea_13;
assign s_si_dmux13[1] = s_dbr_13;
assign s_si_dmux13[2] = s_arg_13;
assign s_si_dmux13[3] = s_sts_13;
assign s_si_dmux13[4] = s_sw_13;
assign s_si_dmux13[5] = s_fidbi_13;
assign s_si_dmux13[6] = s_gpr_13;
assign s_si_dmux13[7] = s_gpr_7; // GPR Sign extended
assign s_si_dmux14[0] = s_ea_14;
assign s_si_dmux14[1] = s_dbr_14;
assign s_si_dmux14[2] = s_arg_14;
assign s_si_dmux14[3] = s_sts_14;
assign s_si_dmux14[4] = s_sw_14;
assign s_si_dmux14[5] = s_fidbi_14;
assign s_si_dmux14[6] = s_gpr_14;
assign s_si_dmux14[7] = s_gpr_7; // GPR Sign extended
assign s_si_dmux15[0] = s_ea_15;
assign s_si_dmux15[1] = s_dbr_15;
assign s_si_dmux15[2] = s_arg_15;
assign s_si_dmux15[3] = s_sts_15;
assign s_si_dmux15[4] = s_sw_15;
assign s_si_dmux15[5] = s_fidbi_15;
assign s_si_dmux15[6] = s_gpr_15;
assign s_si_dmux15[7] = s_gpr_7; // GPR Sign extended
assign s_arg_0 = s_arg_15_0[0];
assign s_arg_1 = s_arg_15_0[1];
assign s_arg_2 = s_arg_15_0[2];
assign s_arg_3 = s_arg_15_0[3];
assign s_arg_4 = s_arg_15_0[4];
assign s_arg_5 = s_arg_15_0[5];
assign s_arg_6 = s_arg_15_0[6];
assign s_arg_7 = s_arg_15_0[7];
assign s_arg_8 = s_arg_15_0[8];
assign s_arg_9 = s_arg_15_0[9];
assign s_arg_10 = s_arg_15_0[10];
assign s_arg_11 = s_arg_15_0[11];
assign s_arg_12 = s_arg_15_0[12];
assign s_arg_13 = s_arg_15_0[13];
assign s_arg_14 = s_arg_15_0[14];
assign s_arg_15 = s_arg_15_0[15];
assign s_dbr_0 = s_dbr_15_0[0];
assign s_dbr_1 = s_dbr_15_0[1];
assign s_dbr_2 = s_dbr_15_0[2];
assign s_dbr_3 = s_dbr_15_0[3];
assign s_dbr_4 = s_dbr_15_0[4];
assign s_dbr_5 = s_dbr_15_0[5];
assign s_dbr_6 = s_dbr_15_0[6];
assign s_dbr_7 = s_dbr_15_0[7];
assign s_dbr_8 = s_dbr_15_0[8];
assign s_dbr_9 = s_dbr_15_0[9];
assign s_dbr_10 = s_dbr_15_0[10];
assign s_dbr_11 = s_dbr_15_0[11];
assign s_dbr_12 = s_dbr_15_0[12];
assign s_dbr_13 = s_dbr_15_0[13];
assign s_dbr_14 = s_dbr_15_0[14];
assign s_dbr_15 = s_dbr_15_0[15];
assign s_ea_0 = s_ea_15_0[0];
assign s_ea_1 = s_ea_15_0[1];
assign s_ea_2 = s_ea_15_0[2];
assign s_ea_3 = s_ea_15_0[3];
assign s_ea_4 = s_ea_15_0[4];
assign s_ea_5 = s_ea_15_0[5];
assign s_ea_6 = s_ea_15_0[6];
assign s_ea_7 = s_ea_15_0[7];
assign s_ea_8 = s_ea_15_0[8];
assign s_ea_9 = s_ea_15_0[9];
assign s_ea_10 = s_ea_15_0[10];
assign s_ea_11 = s_ea_15_0[11];
assign s_ea_12 = s_ea_15_0[12];
assign s_ea_13 = s_ea_15_0[13];
assign s_ea_14 = s_ea_15_0[14];
assign s_ea_15 = s_ea_15_0[15];
assign s_fidbi_0 = s_fidbi_15_0[0];
assign s_fidbi_1 = s_fidbi_15_0[1];
assign s_fidbi_2 = s_fidbi_15_0[2];
assign s_fidbi_3 = s_fidbi_15_0[3];
assign s_fidbi_4 = s_fidbi_15_0[4];
assign s_fidbi_5 = s_fidbi_15_0[5];
assign s_fidbi_6 = s_fidbi_15_0[6];
assign s_fidbi_7 = s_fidbi_15_0[7];
assign s_fidbi_8 = s_fidbi_15_0[8];
assign s_fidbi_9 = s_fidbi_15_0[9];
assign s_fidbi_10 = s_fidbi_15_0[10];
assign s_fidbi_11 = s_fidbi_15_0[11];
assign s_fidbi_12 = s_fidbi_15_0[12];
assign s_fidbi_13 = s_fidbi_15_0[13];
assign s_fidbi_14 = s_fidbi_15_0[14];
assign s_fidbi_15 = s_fidbi_15_0[15];
assign s_gpr_0 = s_gpr_15_0[0];
assign s_gpr_1 = s_gpr_15_0[1];
assign s_gpr_2 = s_gpr_15_0[2];
assign s_gpr_3 = s_gpr_15_0[3];
assign s_gpr_4 = s_gpr_15_0[4];
assign s_gpr_5 = s_gpr_15_0[5];
assign s_gpr_6 = s_gpr_15_0[6];
assign s_gpr_7 = s_gpr_15_0[7];
assign s_gpr_8 = s_gpr_15_0[8];
assign s_gpr_9 = s_gpr_15_0[9];
assign s_gpr_10 = s_gpr_15_0[10];
assign s_gpr_11 = s_gpr_15_0[11];
assign s_gpr_12 = s_gpr_15_0[12];
assign s_gpr_13 = s_gpr_15_0[13];
assign s_gpr_14 = s_gpr_15_0[14];
assign s_gpr_15 = s_gpr_15_0[15];
assign s_laa_1 = s_laa_3_1[0];
assign s_laa_2 = s_laa_3_1[1];
assign s_laa_3 = s_laa_3_1[2];
assign s_lba_0 = s_lba_2_0[0];
assign s_lba_1 = s_lba_2_0[1];
assign s_lba_2 = s_lba_2_0[2];
assign s_sts_0 = s_sts_15_0[0];
assign s_sts_1 = s_sts_15_0[1];
assign s_sts_2 = s_sts_15_0[2];
assign s_sts_3 = s_sts_15_0[3];
assign s_sts_4 = s_sts_15_0[4];
assign s_sts_5 = s_sts_15_0[5];
assign s_sts_6 = s_sts_15_0[6];
assign s_sts_7 = s_sts_15_0[7];
assign s_sts_8 = s_sts_15_0[8];
assign s_sts_9 = s_sts_15_0[9];
assign s_sts_10 = s_sts_15_0[10];
assign s_sts_11 = s_sts_15_0[11];
assign s_sts_12 = s_sts_15_0[12];
assign s_sts_13 = s_sts_15_0[13];
assign s_sts_14 = s_sts_15_0[14];
assign s_sts_15 = s_sts_15_0[15];
assign s_sw_0 = s_sw_15_0[0];
assign s_sw_1 = s_sw_15_0[1];
assign s_sw_2 = s_sw_15_0[2];
assign s_sw_3 = s_sw_15_0[3];
assign s_sw_4 = s_sw_15_0[4];
assign s_sw_5 = s_sw_15_0[5];
assign s_sw_6 = s_sw_15_0[6];
assign s_sw_7 = s_sw_15_0[7];
assign s_sw_8 = s_sw_15_0[8];
assign s_sw_9 = s_sw_15_0[9];
assign s_sw_10 = s_sw_15_0[10];
assign s_sw_11 = s_sw_15_0[11];
assign s_sw_12 = s_sw_15_0[12];
assign s_sw_13 = s_sw_15_0[13];
assign s_sw_14 = s_sw_15_0[14];
assign s_sw_15 = s_sw_15_0[15];
/*******************************************************************************
** Here all input connections are defined **
*******************************************************************************/
assign s_gpr_15_0[15:0] = GPR_15_0;
assign s_f_15_0[15:0] = F_15_0;
assign s_a_15_0[15:0] = A_15_0;
assign s_ea_15_0[15:0] = EA_15_0;
assign s_dbr_15_0[15:0] = DBR_15_0;
assign s_arg_15_0[15:0] = ARG_15_0;
assign s_lba_2_0[2:0] = LBA_2_0;
assign s_sw_15_0[15:0] = SW_15_0;
assign s_laa_3_1[2:0] = LAA_3_1;
assign s_sts_15_0[15:0] = STS_15_0;
assign s_fidbi_15_0[15:0] = FIDBI_15_0;
assign s_csidbs_4_0[4:0] = CSIDBS_4_0;
assign s_aluclk = ALUCLK;
assign s_alud2n = ALUD2N;
/*******************************************************************************
** Here all output connections are defined **
*******************************************************************************/
assign D_15_0 = s_d_15_0_out[15:0];
assign G_15_0 = s_g_15_0_out[15:0];
/*******************************************************************************
** Here all sub-circuits are defined **
*******************************************************************************/
MUX31LP GMUX15 (
.A (s_ea),
.B (s_ef),
.D0(s_d_15_0_out[15]),
.D1(s_a_15_0[15]),
.D2(s_f_15_0[15]),
.ZN(s_g_15_0_out[15])
);
MUX31LP GMUX14 (
.A (s_ea),
.B (s_ef),
.D0(s_d_15_0_out[14]),
.D1(s_a_15_0[14]),
.D2(s_f_15_0[14]),
.ZN(s_g_15_0_out[14])
);
MUX31LP GMUX13 (
.A (s_ea),
.B (s_ef),
.D0(s_d_15_0_out[13]),
.D1(s_a_15_0[13]),
.D2(s_f_15_0[13]),
.ZN(s_g_15_0_out[13])
);
MUX31LP GMUX12 (
.A (s_ea),
.B (s_ef),
.D0(s_d_15_0_out[12]),
.D1(s_a_15_0[12]),
.D2(s_f_15_0[12]),
.ZN(s_g_15_0_out[12])
);
MUX31LP GMUX11 (
.A (s_ea),
.B (s_ef),
.D0(s_d_15_0_out[11]),
.D1(s_a_15_0[11]),
.D2(s_f_15_0[11]),
.ZN(s_g_15_0_out[11])
);
MUX31LP GMUX10 (
.A (s_ea),
.B (s_ef),
.D0(s_d_15_0_out[10]),
.D1(s_a_15_0[10]),
.D2(s_f_15_0[10]),
.ZN(s_g_15_0_out[10])
);
MUX31LP GMUX9 (
.A (s_ea),
.B (s_ef),
.D0(s_d_15_0_out[9]),
.D1(s_a_15_0[9]),
.D2(s_f_15_0[9]),
.ZN(s_g_15_0_out[9])
);
MUX31LP GMUX8 (
.A (s_ea),
.B (s_ef),
.D0(s_d_15_0_out[8]),
.D1(s_a_15_0[8]),
.D2(s_f_15_0[8]),
.ZN(s_g_15_0_out[8])
);
MUX31LP GMUX7 (
.A (s_ea),
.B (s_ef),
.D0(s_d_15_0_out[7]),
.D1(s_a_15_0[7]),
.D2(s_f_15_0[7]),
.ZN(s_g_15_0_out[7])
);
MUX31LP GMUX6 (
.A (s_ea),
.B (s_ef),
.D0(s_d_15_0_out[6]),
.D1(s_a_15_0[6]),
.D2(s_f_15_0[6]),
.ZN(s_g_15_0_out[6])
);
MUX31LP GMUX5 (
.A (s_ea),
.B (s_ef),
.D0(s_d_15_0_out[5]),
.D1(s_a_15_0[5]),
.D2(s_f_15_0[5]),
.ZN(s_g_15_0_out[5])
);
MUX31LP GMUX4 (
.A (s_ea),
.B (s_ef),
.D0(s_d_15_0_out[4]),
.D1(s_a_15_0[4]),
.D2(s_f_15_0[4]),
.ZN(s_g_15_0_out[4])
);
MUX31LP GMUX3 (
.A (s_ea),
.B (s_ef),
.D0(s_d_15_0_out[3]),
.D1(s_a_15_0[3]),
.D2(s_f_15_0[3]),
.ZN(s_g_15_0_out[3])
);
MUX31LP GMUX2 (
.A (s_ea),
.B (s_ef),
.D0(s_d_15_0_out[2]),
.D1(s_a_15_0[2]),
.D2(s_f_15_0[2]),
.ZN(s_g_15_0_out[2])
);
MUX31LP GMUX1 (
.A (s_ea),
.B (s_ef),
.D0(s_d_15_0_out[1]),
.D1(s_a_15_0[1]),
.D2(s_f_15_0[1]),
.ZN(s_g_15_0_out[1])
);
MUX31LP GMUX0 (
.A (s_ea),
.B (s_ef),
.D0(s_d_15_0_out[0]),
.D1(s_a_15_0[0]),
.D2(s_f_15_0[0]),
.ZN(s_g_15_0_out[0])
);
CGA_ALU_OUTMUX_SEL8 DMUX15 (
.D(s_d_15_0_out[15]),
.E_7_0(s_e_dmux15[7:0]),
.SI_7_0(s_si_dmux15[7:0])
);
CGA_ALU_OUTMUX_SEL8 DMUX14 (
.D(s_d_15_0_out[14]),
.E_7_0(s_e_dmux14[7:0]),
.SI_7_0(s_si_dmux14[7:0])
);
CGA_ALU_OUTMUX_SEL8 DMUX13 (
.D(s_d_15_0_out[13]),
.E_7_0(s_e_dmux13[7:0]),
.SI_7_0(s_si_dmux13[7:0])
);
CGA_ALU_OUTMUX_SEL8 DMUX12 (
.D(s_d_15_0_out[12]),
.E_7_0(s_e_dmux12[7:0]),
.SI_7_0(s_si_dmux12[7:0])
);
CGA_ALU_OUTMUX_SEL8 DMUX11 (
.D(s_d_15_0_out[11]),
.E_7_0(s_e_dmux11[7:0]),
.SI_7_0(s_si_dmux11[7:0])
);
CGA_ALU_OUTMUX_SEL8 DMUX10 (
.D(s_d_15_0_out[10]),
.E_7_0(s_e_dmux10[7:0]),
.SI_7_0(s_si_dmux10[7:0])
);
CGA_ALU_OUTMUX_SEL8 DMUX9 (
.D(s_d_15_0_out[9]),
.E_7_0(s_e_dmux9[7:0]),
.SI_7_0(s_si_dmux9[7:0])
);
CGA_ALU_OUTMUX_SEL8 DMUX8 (
.D(s_d_15_0_out[8]),
.E_7_0(s_e_dmux8[7:0]),
.SI_7_0(s_si_dmux8[7:0])
);
CGA_CPU_ALU_OUTMUX_SEL7 DMUX7 (
.D(s_d_15_0_out[7]),
.E_6_0(s_e_dmux7[6:0]),
.SI_6_0(s_si_dmux7[6:0])
);
CGA_ALU_OUTMUX_SEL8 DMUX6 (
.D(s_d_15_0_out[6]),
.E_7_0(s_e_dmux6[7:0]),
.SI_7_0(s_si_dmux6[7:0])
);
CGA_ALU_OUTMUX_SEL8 DMUX5 (
.D(s_d_15_0_out[5]),
.E_7_0(s_e_dmux5[7:0]),
.SI_7_0(s_si_dmux5[7:0])
);
CGA_ALU_OUTMUX_SEL8 DMUX4 (
.D(s_d_15_0_out[4]),
.E_7_0(s_e_dmux4[7:0]),
.SI_7_0(s_si_dmux4[7:0])
);
CGA_ALU_OUTMUX_SEL8 DMUX3 (
.D(s_d_15_0_out[3]),
.E_7_0(s_e_dmux3[7:0]),
.SI_7_0(s_si_dmux3[7:0])
);
CGA_ALU_OUTMUX_SEL8 DMUX2 (
.D(s_d_15_0_out[2]),
.E_7_0(s_e_dmux2[7:0]),
.SI_7_0(s_si_dmux2[7:0])
);
CGA_ALU_OUTMUX_SEL8 DMUX1 (
.D(s_d_15_0_out[1]),
.E_7_0(s_e_dmux1[7:0]),
.SI_7_0(s_si_dmux1[7:0])
);
CGA_ALU_OUTMUX_SEL8 DMUX0 (
.D(s_d_15_0_out[0]),
.E_7_0(s_e_dmux0[7:0]),
.SI_7_0(s_si_dmux0[7:0])
);
CGA_ALU_OUTMUX_IDBS OUTMUX_IDBS
(
.sysclk(sysclk),
.ALUCLK_EN(ALUCLK_EN),
.ALUCLK(s_aluclk),
.ALUD2N(s_alud2n),
.CSIDBS_4_0(s_csidbs_4_0[4:0]),
.EA(s_ea),
.EAARG(s_eaarg),
.EBARG(s_ebarg),
.EABARG(s_eabarg),
.EARG(s_earg),
.EBMG(s_ebmg),
.EDBR(s_edbr),
.EF(s_ef),
.EFIDB(s_efidb),
.EGPRH(s_egprh),
.EGPRL(s_egprl),
.EGPRS(s_egprs),
.ESTS(s_ests),
.ESWAP(s_eswap)
);
endmodule
