Decoder_4

Source: Verilog/Shared/logisim/Decoder_4.v

Hierarchy: not instantiated by any of the 9 build tops (elaborated by yosys).

Module hierarchy - All modules

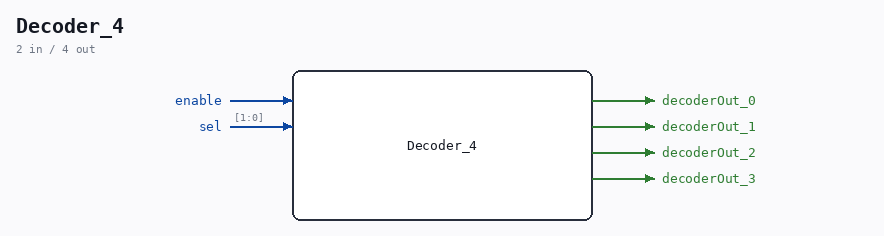

Schematic

Drawn from the Verilog: no build top uses this module, so it was elaborated from its own file with no defines and default parameters. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Description

Logisim-evolution goes FPGA automatic generated Verilog code https://github.com/logisim-evolution/ Component : Decoder_4

Ports

Direction	Width	Name	Description
output	1	decoderOut_0
output	1	decoderOut_1
output	1	decoderOut_2
output	1	decoderOut_3
input	1	enable
input	[1:0]	sel

Verilog source

Verilog/Shared/logisim/Decoder_4.v on GitHub.

Show the Verilog of Decoder_4 (37 lines)

/******************************************************************************
 ** Logisim-evolution goes FPGA automatic generated Verilog code             **
 ** https://github.com/logisim-evolution/                                    **
 **                                                                          **
 ** Component : Decoder_4                                                    **
 **                                                                          **
 *****************************************************************************/

module Decoder_4( decoderOut_0,
                  decoderOut_1,
                  decoderOut_2,
                  decoderOut_3,
                  enable,
                  sel );

   /*******************************************************************************
   ** The inputs are defined here                                                **
   *******************************************************************************/
   input       enable;
   input [1:0] sel;

   /*******************************************************************************
   ** The outputs are defined here                                               **
   *******************************************************************************/
   output decoderOut_0;
   output decoderOut_1;
   output decoderOut_2;
   output decoderOut_3;

   /*******************************************************************************
   ** The module functionality is described here                                 **
   *******************************************************************************/
   assign decoderOut_0  = (enable&(sel == 2'b00)) ? 1'b1 : 1'b0;
   assign decoderOut_1  = (enable&(sel == 2'b01)) ? 1'b1 : 1'b0;
   assign decoderOut_2  = (enable&(sel == 2'b10)) ? 1'b1 : 1'b0;
   assign decoderOut_3  = (enable&(sel == 2'b11)) ? 1'b1 : 1'b0;
endmodule
