Decoder_8

Source: Verilog/Shared/logisim/Decoder_8.v

Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_WRF > ND38GLP > Decoder_8 - instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.WRF.LAA_LO.PLEXERS_1

Used in: ND38GHP (all tops), ND38GLP (all tops)

Contains: no other modules.

Module hierarchy - All modules

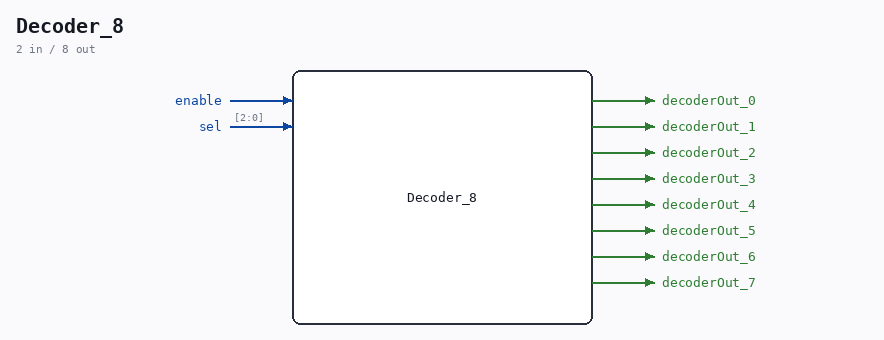

Decoder_8 symbol

Schematic

Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.WRF.LAA_LO.PLEXERS_1. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Decoder_8 schematic

Description

Component : Decoder_8

Ports

Direction Width Name Description
input 1 enable
input [2:0] sel
output 1 decoderOut_0
output 1 decoderOut_1
output 1 decoderOut_2
output 1 decoderOut_3
output 1 decoderOut_4
output 1 decoderOut_5
output 1 decoderOut_6
output 1 decoderOut_7

Verilog source

Verilog/Shared/logisim/Decoder_8.v on GitHub.

Show the Verilog of Decoder_8 (39 lines)
/******************************************************************************
 **                                                                          **
 ** Component : Decoder_8                                                    **
 **                                                                          **
 *****************************************************************************/

module Decoder_8 (
    input enable,
    input [2:0] sel,
    output reg decoderOut_0,
    output reg decoderOut_1,
    output reg decoderOut_2,
    output reg decoderOut_3,
    output reg decoderOut_4,
    output reg decoderOut_5,
    output reg decoderOut_6,
    output reg decoderOut_7
);

    // Combinational logic for the 8-output decoder
    always @(*) begin
        if (enable) begin
            case (sel)
                3'b000: {decoderOut_7, decoderOut_6, decoderOut_5, decoderOut_4, decoderOut_3, decoderOut_2, decoderOut_1, decoderOut_0} = 8'b00000001;
                3'b001: {decoderOut_7, decoderOut_6, decoderOut_5, decoderOut_4, decoderOut_3, decoderOut_2, decoderOut_1, decoderOut_0} = 8'b00000010;
                3'b010: {decoderOut_7, decoderOut_6, decoderOut_5, decoderOut_4, decoderOut_3, decoderOut_2, decoderOut_1, decoderOut_0} = 8'b00000100;
                3'b011: {decoderOut_7, decoderOut_6, decoderOut_5, decoderOut_4, decoderOut_3, decoderOut_2, decoderOut_1, decoderOut_0} = 8'b00001000;
                3'b100: {decoderOut_7, decoderOut_6, decoderOut_5, decoderOut_4, decoderOut_3, decoderOut_2, decoderOut_1, decoderOut_0} = 8'b00010000;
                3'b101: {decoderOut_7, decoderOut_6, decoderOut_5, decoderOut_4, decoderOut_3, decoderOut_2, decoderOut_1, decoderOut_0} = 8'b00100000;
                3'b110: {decoderOut_7, decoderOut_6, decoderOut_5, decoderOut_4, decoderOut_3, decoderOut_2, decoderOut_1, decoderOut_0} = 8'b01000000;
                3'b111: {decoderOut_7, decoderOut_6, decoderOut_5, decoderOut_4, decoderOut_3, decoderOut_2, decoderOut_1, decoderOut_0} = 8'b10000000;
                default: {decoderOut_7, decoderOut_6, decoderOut_5, decoderOut_4, decoderOut_3, decoderOut_2, decoderOut_1, decoderOut_0} = 8'b00000000;
            endcase
        end else begin
            {decoderOut_7, decoderOut_6, decoderOut_5, decoderOut_4, decoderOut_3, decoderOut_2, decoderOut_1, decoderOut_0} = 8'b00000000;
        end
    end

endmodule
