R41P

Source: Verilog/Shared/ndlib/R41P.v

Hierarchy: not instantiated by any of the 9 build tops (elaborated by yosys).

Module hierarchy - All modules

Schematic

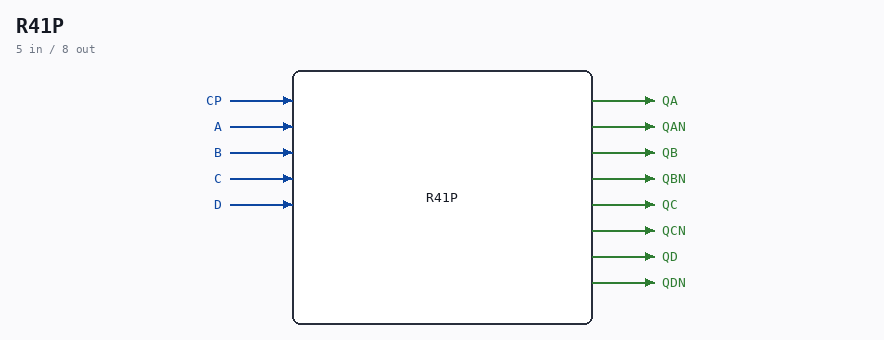

Drawn from the Verilog: no build top uses this module, so it was elaborated from its own file with no defines and default parameters. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Description

ND120 Shared Component : R41P Last reviewed: 9-FEB-2025 Ronny Hansen

Ports

Direction	Width	Name	Description
input	1	CP
input	1	A
input	1	B
input	1	C
input	1	D
output	1	QA
output	1	QAN
output	1	QB
output	1	QBN
output	1	QC
output	1	QCN
output	1	QD
output	1	QDN

Verilog source

Verilog/Shared/ndlib/R41P.v on GitHub.

Show the Verilog of R41P (52 lines)

/**************************************************************************
** ND120 Shared                                                          **
**                                                                       **
** Component : R41P                                                      **
**                                                                       **
** Last reviewed: 9-FEB-2025                                             **
** Ronny Hansen                                                          **
***************************************************************************/

module R41P (
    input CP,

    input A,
    input B,
    input C,
    input D,

    output QA,
    output QAN,
    output QB,
    output QBN,
    output QC,
    output QCN,
    output QD,
    output QDN
);



reg [3:0] reg8bit;

assign QA   = reg8bit[0];
assign QAN  = ~reg8bit[0];

assign QB   = reg8bit[1];
assign QBN  = ~reg8bit[1];

assign QC   = reg8bit[2];
assign QCN  = ~reg8bit[2];

assign QD   = reg8bit[3];
assign QDN  = ~reg8bit[3];

always @(posedge CP) begin
    reg8bit[0] <= A;
    reg8bit[1] <= B;
    reg8bit[2] <= C;
    reg8bit[3] <= D;
end

endmodule
